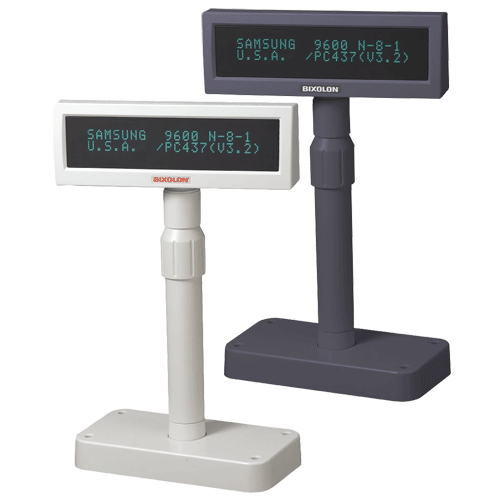

Vacuum Fluorescent Display with display 20 columns and 2 lines
-
Blue-green fluorescent colour is easy on the eyes
-
The display panel is movable so that it can be adjusted for the best viewing angle
-
Selective Pole length
-
RS232 or USB interface
-
The self-test function checks the circuit board and performs each function for diagnostic purposes.
-
The user-defined and international character sets are standard
?
|
Display Type |
Blue Green Vacuum Fluorescent Display |
|
Display pattern |
5 x 7 Dot Matrix, Comma, Decimal Point, Annunciator |
|
Brightness |
800~1000 cd/m² |
|
Viewing Angle |
Max. 52° (5 Position) |
|
Horizontal rotating Angle |
Max. 336° |
|
Font Size |
5.5(W) x 10.5(H) mm |
|
Dot Size |
0.86 x 1.2 mm |
|
Character Number |
20 x 2 lines |
|
Character Type |
Alphanumeric Characters: 95, International Characters: 37, Graphic Characters 128 x 12 Pages |
|
Command |
ICD-2002, EPSON ESC/POS, Aedex, UTC/S, UTC/P, ADM787/788, NCR RealPOS, CD5220, PD6000, ICD2002 |
|
Language |
USA, France, Germany, U.K., Sweden, Denmark I & II, Italy, Spain, Norway, Japan (Katakana), Slavonic, Russian |
|
Interface |
RS-232 interface or USB |
|
Pass Through Function |
USB has power Pass-through function |
|
Dimension (VFD Panel) |
219 x 48.5 x 80 mm |
|
Adjustable telescopic Pole height |
158~533 mm (H) x 33 mm (Ø) |
|
Dimension |
217 mm (W) x 102 mm (D) x 27 mm (H) |
|
Weight |
1.0 Kg |
