High Speed Dot Matrix Printing
-
Fast print speed 4.6LPS
-
Now standard without interface board.
-
Various interface cards available:
RS-232C, IEEE Parallel, RS-485 or USB
User Changeable
-
ESC/POS compatible
-
Black & Red Printing
-
Heavy Duty Auto Cutter, will cut 3 Ply Paper
-
Easy to use:
-
Auto Paper loading
-
Paper Jam and skew reduction technology
-
-
High durability (18M Lines)
-

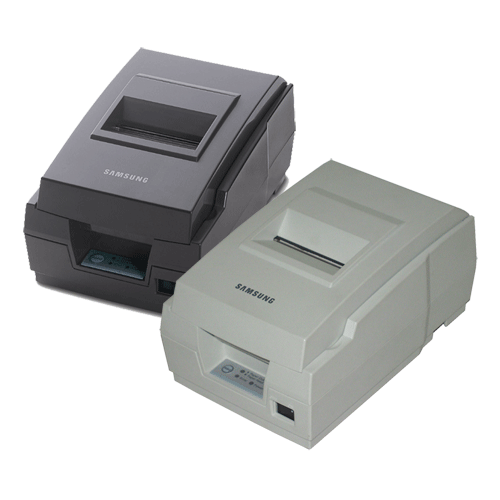

Available in Dark Grey & White
?
|
Ribbon |
RCE38BR |
Black/Red Cassette Ribbon |
|
RCE38B |
Black Cassette Ribbon |
|
|
RCE38P |
Violet Cassette Ribbon |
|
|
Paper |
P7676 |
Plain Bond Lint Free 76 X 76 Paper Roll |
|
C7676 |
Carbonless 2 Ply 76 X 76 Paper Roll |
|
|
Interface Modules |
RIF350R |
RS-232 Interface |
|
RIF350P |
Parallel Interface |
|
|
RIF350S |
RS-485 Interface |
|
|
RIF350U |
USB Interface |
|
Printing Method |
9 Pin Serial dot Matrix |
|
|
Printing Direction |
Bi-directional, Friction feed |
|
|
Printing Speed (Max.) |
up to 4.6 LPS (40 Columns) |
|
|
Fonts |
Alphanumeric Character :95 |
|
|
Extended Graphic : 128 X 20 Page (1 space page) |
||
|
International Character :32 |
||
|
Character Size |
Font A : 1.2 (W) x 3.1 (H) 7 x 9 Dots |
|
|
Font B : 1.6 (W) x 3.1 (H) 9 x 9 Dots |
||
|
Characters per line |
Font A : 40/42 |
|
|
Font B : 33/35 |
||
|
Paper Type |
Plain Roll Paper |
|
|
Paper Width |
76 ± 0.5mm |
|
|
Paper Roll Diameter |
Max Ø 83.0mm |
|
|
Paper Supply Method |
Auto Paper Loading Mechanism |
|
|
Emulation |
ESC/POS |
|
|
Print Buffer |
4 Kbytes |
|
|
Sensors |
Paper End Sensor |
|
|
Drawer Ports |
2 ports |
|
|
Standard Interfaces Available |
Parallel |
IEEE1284 (Compatible, Nibble, ECP Mode) |
|
Serial |
RS232C, Baudrate from 2400-38400 |
|
|
RS485 |
||
|
USB |
||
|
Driver available |
Windows95/98/Me/2000/NT/XP/2003 server, OPOS |
|
|
External Dimensions (W x D x H) |
SRP-270A: 160 x 247 x 130 mm |
|
|
SRP-270C: 160 x 247 x 149 |
||
|
SRP-270D: 160 x 247 x 159 |
||
|
Reliability |
Mechanism |
18 million Lines |
|
Auto Cutter |
1.5 million cuts |
|
|
EMC/Safety Standards |
CE, FCC, UL, TUV, GS |
|
