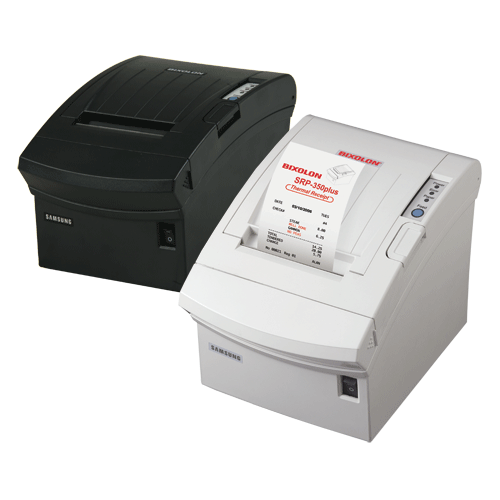

Bixolon SRP-350 Plus II Thermal POS Printer -Compatibility and Convenience

The Bixolon SRP-350 Plus II is a thermal receipt printer commonly used in point-of-sale (POS) systems in various industries such as retail, hospitality, and healthcare.

Customised Solution, Support and Installation

Free worldwide shipping on all orders over $50

  • 30 days easy returns
  • Order yours before 2.30pm for same day dispatch
Guaranteed Safe Checkout

The Bixolon SRP-350 Plus II is a thermal receipt printer commonly used in point-of-sale (POS) systems in various industries such as retail, hospitality, and healthcare.

Here are Bixolon SRP-350 Plus II key features and specifications:

1. **Printing Technology**: The Bixolon SRP-350 Plus II utilizes direct thermal printing technology. This means it prints on heat-sensitive paper, eliminating the need for ink cartridges or ribbons.

2. **Printing Speed**: It offers a printing speed of up to 250 millimeters per second (mm/s), enabling fast and efficient printing of receipts and other documents.

3. **Print Resolution**: The printer typically provides a print resolution of 180 dpi (dots per inch), ensuring clear and crisp text and graphics on receipts.

4. **Print Width**: The Bixolon SRP-350 Plus II supports printing on paper widths of 80mm (3.15 inches), which is the standard size for most receipt rolls used in POS systems.

5. **Connectivity Options**: It typically comes with various connectivity options including USB, Serial, Ethernet, and Bluetooth interfaces, providing flexibility for integration with different POS systems and environments.

6. **Compatibility**: The Bixolon SRP-350 Plus II is compatible with various operating systems including Windows, Linux, and OPOS (OLE for Retail POS) systems, making it versatile for different POS software applications.

7. **Reliability**: Known for its reliability, the Bixolon SRP-350 Plus II is designed for high-volume printing environments and can withstand continuous operation.

8. **Paper Handling**: It supports standard thermal paper rolls with a diameter of up to 83mm (3.27 inches), allowing for longer printing times before needing to replace paper rolls.

9. **Ease of Use**: The printer is designed for ease of use with features such as simple paper loading and an auto-cutter for efficient receipt cutting.

10. **Compact Design**: With its compact footprint, the SRP-350 Plus II is suitable for environments where space is limited such as retail checkout counters and restaurant POS stations.

Overall, the Bixolon SRP-350 Plus II thermal receipt printer offers fast, reliable, and high-quality printing, making it a popular choice for businesses looking for efficient POS printing solutions.



Bixolon SRP-350 Plus II  Replacement for this printer now is SRP-350 Plus III

  • Fast printing speed of up to 250mm per second
    – Optimized mechanical components and software to enable fast and stable printing
    – Improved CPU (32 Bit)
    – Larger memory capacity(16Kbytes)
    – Two colour printing

  • High speed USB 2.0 standard onboard  (480 Mbps)

  • Long lasting Auto-cutter up to 1.8 million cuts with easy paper-jam removal

  • Two colour printing (on special Paper)

  • Customer oriented software tools provided

  • 2D barcode printing support
    – PDF417
    – QR Code

  • MAC OS Drivers supported

  • Available in Dark Grey & White (special Order)

  • Only Auto cutter version available in Australia

Paper

T8080

Thermal 80x80x11.5 Paper Rolls

Interface Cards

RIF350R

RS-232 Interface

RIF350PlusP

Parallel Interface

RIF350E

Ethernet Interface

Wall Mounting Bracket

RWM350

Splash Cover

RSC350II

Printing Method

Thermal Line Dot method

Print Speed

Max. 250 mm/sec

Resolution

180 Dpi (203Dpi available, special order only)

Paper Size

width 80 mm, Ø up to 83 mm

Column Capacity

Font A: 42 Columns

Font B: 56 Columns

Character Set

Alpha Numeric Character: 95

Extended Graphics: 128 X 37 pages

International Characters: 32

Character Size

Font A:

1.25 x 3 mm (12 x 24 dots)

Font B:

0.88 x 3 mm (9 X 24 dots)

Emulation

ESC/POS

Bar-code type

1D: UPC-A/E, EAN-13/8, ITF, Code 39, Code 128, CODABAR,

Code 93

2D: PDF417, QR-Code

Data input Buffer

4 Kb

Memory

16 Kbytes

Interface

Serial

RS-232C

RS-485

Unidirectional Parallel

IEEE 1284

USB

USB 2.0 (fitted as standard)

Ethernet

10/100

Drawer Kick-out

2 drawers through 1 RJ12 Connector

Power

24 DCV +/- 7%, 2.5A,  External power supply

External Dimensions

(WxDxH)

145 x 195 x 146 mm

Reliability

Print Head

150 Km

Mechanism

70,000,000 Lines

Auto Cutter

1.8 million cuts

Safety Standards

UL, C-UL, FCC Class A, TUV-GS, CE Marking

Operating Temperature

0 ~ 45 °C
