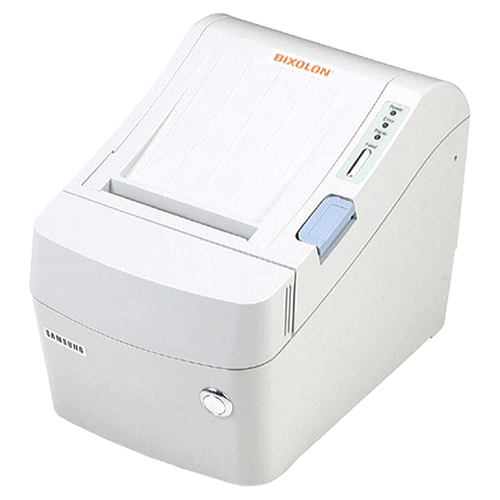

Bixolon SRP-370-372 Thermal POS Printer – Fast and Efficient Printing

Bixolon SRP-370 is a receipt printer designed for various Point of Sale (POS) applications in retail, hospitality, and other industries. Here are some key features and specifications of the Bixolon SRP-370:

Customised Solution, Support and Installation

Free worldwide shipping on all orders over $50

  • 30 days easy returns
  • Order yours before 2.30pm for same day dispatch
Guaranteed Safe Checkout

Bixolon SRP-370 is a receipt printer designed for various Point of Sale (POS) applications in retail, hospitality, and other industries. Here are some key features and specifications of the Bixolon SRP-370:

1. **Printing Technology**: The SRP-370 typically utilizes direct thermal or thermal transfer printing technology. Direct thermal printing uses heat to produce images on specially coated thermal paper, while thermal transfer printing uses a ribbon to transfer ink onto the paper.

2. **Printing Speed**: It offers a printing speed of up to 200 millimeters per second (mm/s) in direct thermal mode or up to 102 mm/s in thermal transfer mode, providing fast and efficient printing for POS transactions.

3. **Print Resolution**: The print resolution of the Bixolon SRP-370 is typically 203 dots per inch (dpi), resulting in clear and legible text and graphics on receipts and other documents.

4. **Print Width**: It supports printing on paper widths up to 80mm (3.15 inches) or 72mm (2.83 inches), depending on the specific model, making it suitable for printing receipts and other documents of various sizes commonly used in POS applications.

5. **Connectivity Options**: The SRP-370 typically offers multiple connectivity options, including USB, Serial, Ethernet, and Bluetooth interfaces, allowing it to be easily integrated into different POS systems and environments.

6. **Compatibility**: The Bixolon SRP-370 is compatible with various operating systems and POS software, providing flexibility in deployment and integration with existing systems.

7. **Reliability**: The SRP-370 is designed for reliability and durability, making it suitable for high-volume printing environments.

8. **Paper Handling**: It typically supports standard thermal paper rolls with a diameter of up to 83mm (3.27 inches), offering flexibility in printing different types of receipts and documents.

9. **Ease of Use**: The printer is designed for easy operation and maintenance, with features such as simple paper loading, auto-cutter, and status monitoring tools.

10. **Compact Design**: The SRP-370 is often designed with a compact footprint, making it suitable for environments where space is limited, such as retail counters and checkout areas.

Overall, the Bixolon SRP-370 receipt printer offers fast, reliable, and efficient printing capabilities, making it a popular choice for businesses looking for high-quality receipt printing solutions for their POS systems.

Replacement: SRP-350 Plus III

  • Compact Thermal Receipt Printer

  • Fast Printing Speed up to 200 mm/sec

  • Two Colour Printing

  • (on special thermal paper)

  • Multiple interface cards available:

  • RS-232C, IEEE Parallel, RS-485, USB, Ethernet & Bluetooth

  • Large NV Bitmap Memory

  • ESC POS Compatible

  • Easy to use:

    – Drop in Paper loading

    – Eliminates Paper Jams

  • Full or Partial Cut

  • available in Dark Grey & White

  • available as SRP372 which has 203dpi resolution

?

Interface Cards

RIF350R

RS-232 Interface

RIF350S

RS-485 Interface

RIF350P

Parallel Interface

RIF350U

USB Interface

RIF350E

Ethernet Interface

Splash Cover

RSC370

Paper

T8080

Thermal 80x80x11.5 Paper Rolls

T80100

Thermal 80x100x11.5 Paper Rolls
Take advantage of nearly double the length on a this roll compared to the 80mm Roll. Less changing of rolls!
?

Printing Method

Thermal Line Dot method

Print Speed

Max. 200 mm/sec (61.7 Lines/sec)

Resolution

SRP370: 180 dpi (7 dot/mm)

SRP372: 203 dpi (8 dot/mm)

Column Capacity

Font A: 42 Columns

Font B: 56 Columns

Character Set

Alpha Numeric Character: 95

Extended Graphics: 128 X 7 (1 Space Page)

International Characters: 32

Character Size

Font A:

1.25 x 3 mm (12 x 24 dots)

Font B:

0.88 x 3 mm (9 X 24 dots)

Emulation

ESC/POS

Paper Type

Mono & Two Colour Thermal Paper

Paper Width

57.5 ± 0.5 mm, 79.5 ± 0.5 mm, 82.5 ± 0.5mm

Roll Diameter

Max. 105 mm

Bar-code type

UPC-A/E, JAN-13/8, ITF, Code 39, Code 128, CODABAR,

Code 93

Data Buffer

4Kb

NV Bitmap Memory

256 Kb

Interface

Serial

RS-232C

RS-485

Unidirectional Parallel

IEEE 1284

USB

Ethernet

Drawer Kick-out

2 drawers through 1 RJ12 Connector

Power

24 DCV, 2.3A,  External power supply

External Dimensions

(WxDxH)

146 x 204 x 160 mm

Reliability

Head

150Km

Mechanism

Mono: 70,000,000 Lines

Colour: 35,000,000 Lines

Auto Cutter

1.5 million Cuts

Safety Standards

UL, C-UL, FCC Class A, TUV-GS, CE Marking
