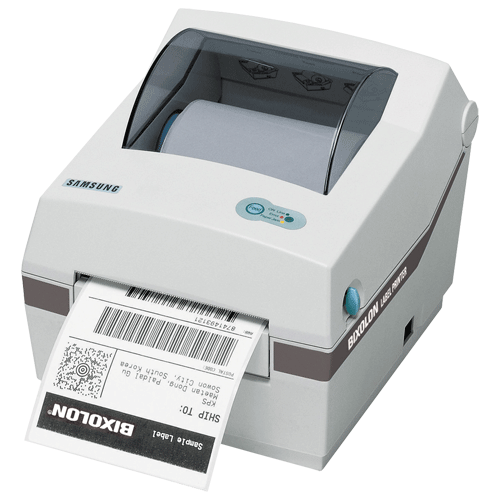

Direct Thermal Label Printer
-
Fast Printing Speed up to 5.1 inch/sec
-
Multiple interface onboard:
-
RS-232C, IEEE Parallel & USB or Ethernet, Parallel & USB
-
Logo Printing (BMP & PCX)
-
Internal or External Roll
-
Peel-off (Dispenser) standard
-
Easy to use:
Drop in Paper loading
Eliminates Paper Jams
-
Supplied with Powerfull Label Design Software (SAMLABEL)
-
External Power Supply (included)
?
|
Labels |
LAB100100TWS40 |
Thermal Labels 100 x 100mm 38.5mm Core, 12 rolls per box, Approx. 500 labels per roll. Permanent adhesive. |
|
LAB10050TWS40 |
Thermal Labels 100 x 50mm 38.5mm Core, 12 rolls per box, Approx. 800 labels per roll. Permanent adhesive. |
|
|
LAB4028TWS25 |
Direct Thermal Label 40 x 28 mm |
|
|
LAB5625TWS25 |
Direct Thermal Label 56 x 25 mm Permanent Adhesive. Approx. 770 Labels per Roll |
|
Printing Method |
Direct Thermal line Printing |
|
|
Print Speed |
Max. 127 mm/sec (5.1 Inches/sec) |
|
|
Resolution |
203 dpi (8 dot/mm) |
|
|
Character Set |
7 Resident bitmap fonts |
|
|
7 Code Page, expandable up to 4X |
||
|
Soft font storage |
||
|
BMP & PCX Graphic Support |
||
|
Bar-code type |
UPC-A/E, JAN-13/8, ITF, Code 39, Code 128, CODABAR, Code 93, Interleave 2 of 5, UCC-EAN128. 2D Codes: QR Code, Maxicode & PDF417 |
|
|
Emulation |
ESC/POS, EPLII & ZPLII |
|
|
Paper Type |
Labels, Tag, Continuous & Fan fold |
|
|
Paper Width |
25.4 ~ 101.6 mm |
|
|
Roll Diameter |
Core: 25.4 ~ 38.1 mm |
|
|
Roll outer Ø: Max. 130 mm |
||
|
CPU |
32 Bit |
|
|
Receive Buffer Size |
32 Kbyte |
|
|
Flash Memory |
2 Mb |
|
|
Interface |
Serial |
RS-232C |
|
Unidirectional Parallel |
IEEE 1284 |
|
|
USB |
|
|
|
Ethernet |
|
|
|
Power |
24 DCV, 2.3A, External power supply |
|
|
External Dimensions (WxDxH) |
184 x 221 x 171 mm |
|
|
Reliability |
Head |
50,000,000 Pulse (Approx. 50Km) |
|
Mechanism MCBF |
20,000,000 Lines |
|
|
Safety Standards |
UL, C-UL, FCC Class A, TUV-GS, CE Marking |
|
