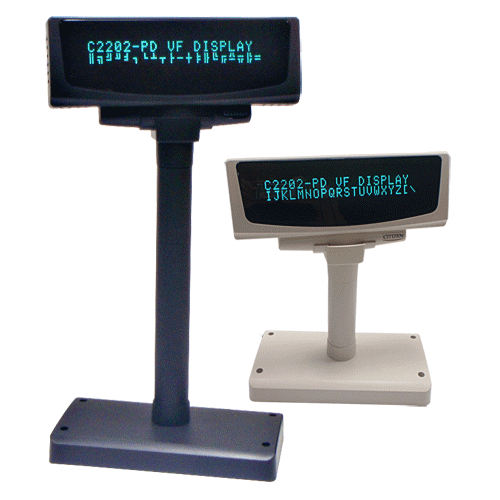

Vacuum Fluorescent Display with display 20 columns and 2 lines
-
Blue-green fluorescent colour is easy on the eyes.
-
The display panel is movable so that it can be adjusted for the best viewing angle.
-
Adjustable height, short and long pole
-
Pass through function to reduce cable connections.
-
The self-test function checks the circuit board and performs each function for diagnostic purposes.
|
Display Type |
Blue Green Vacuum Fluorescent Display |
|
Display pattern |
5 x 7 Dot Matrix, Comma, Decimal Point |
|
Brightness |
700 cd/m² |
|
Viewing Angle |
+/- 30° |
|
Horizontal rotating Angle |
Max. 270° |
|
Font Size |
5.25(W) x 9.2(H) mm |
|
Character pitch |
8.3 mm |
|
Character Number |
20 Columns x 2 Lines |
|
Character |
PC-437/850/860/863/865, Slavonic, Russian, Katakana |
|
Command |
CBM Standard, ESC/POS |
|
Interface |
RS-232 interface |
|
Pass Through Function |
Pass-through function is standard |
|
Operating Temperature |
0 ~ 40 ºC |
|
Operating Humidity |
10 ~ 90% |
|
Dimension (Panel) |
230 x 42 x 100 mm |
|
MTBF |
25,000 hours |
|
Weight |
0.9 Kg |
|
Safety |
FCC class B, CE, C-tick |
?
