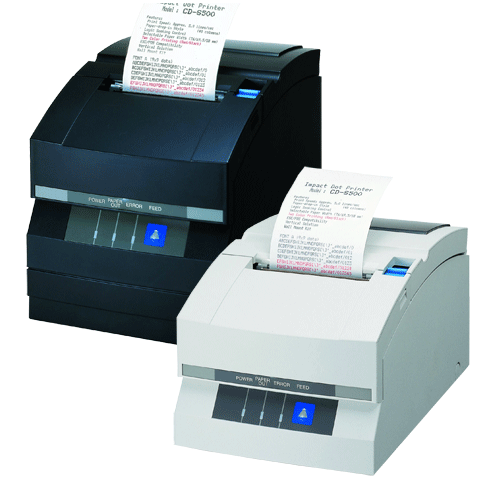

High Speed Dot Matrix Printing
-
Build in power supply
-
Drop in Paper loading
-
Fast print speed 5.0 LPS
-
Logic-seeking Control
-
Built in buzzer alarm
-
NV Memory for Bit map Data Storage
-
Page mode printing
-
3 Ply Printing Capability
-
Flexible paper widths (57mm, 69mm, 76mm)
-
Can be placed and operated vertically to save bench space
-
Factory option: Black Mark Sensor
?
|
Ribbon |
IR31BR |
Black/Red Cassette Ribbon |
|
IR31B |
Black Cassette Ribbon |
|
|
RCC31BDC |
Black Dry Cleaning Cassette Ribbon |
|
|
Paper |
P5757 |
Plain Bond Lint Free 57 X 57 Paper Roll |
|
P7676 |
Plain Bond Lint Free 76 X 76 Paper Roll |
|
|
C5757 |
2 Ply Carbonized 57 x 57 Paper Roll |
|
|
C7676 |
2 Ply Carbonized 76 x 76 Paper Roll |
|
Printing Method |
9 Pin Serial dot Matrix |
|
|
Printing Direction |
Bi-directional, Logic seeking, Friction feed |
|
|
Number of Columns |
40/42 or 33/35 Columns (76.2 mm paper width) |
|
|
36/30 or 38/31 Columns (69.5 mm paper width) |
||
|
30/25 or 31/26 Columns (57.5 mm paper width) |
||
|
Printing Speed (Max.) |
approx. 5.0 Lines/Sec at 76.2 mm + 40 Columns |
|
|
approx. 5.4 Lines/Sec at 69.5 mm + 36 Columns |
||
|
approx. 6.0 Lines/Sec at 57.5 mm + 30 Columns |
||
|
Fonts |
Alphanumeric Character |
|
|
Code Page 437, 850, 860, 863, 865, 852, 866, 857, 858 & WPC1252 |
||
|
International Character |
||
|
Character Size |
Font A : 1.25 x 3.12 mm (7 X 9 dots) |
|
|
Font B : 1.57 x 3.12 mm (9 X 9 dots) |
||
|
Paper feed method |
Friction |
|
|
Line Feed Speed |
40 Lines/Sec |
|
|
Paper Type |
Plain Paper, 2 Ply or 3 Ply |
|
|
Paper Width |
57.5 ± 0.5mm 69.5 ± 0.5mm 76 ± 0.5mm |
|
|
Paper Roll Diameter |
Max Ø 83.0mm |
|
|
Paper Supply Method |
Easy Paper Loading, Drop in and Print |
|
|
Emulation |
ESC/POS, CBM Mode & STAR Mode |
|
|
Print Buffer |
4K/40 bytes |
|
|
NV Memory |
128 Kbytes |
|
|
Sensors |
Paper Near End Sensor, Paper End Sensor , Rear Cover Open Sensor |
|
|
Drawer Ports |
2 ports |
|
|
Standard Interfaces Available |
Parallel |
IEEE1284 and Centronics Compliant |
|
Serial |
RS232C |
|
|
USB |
||
|
Driver available |
Windows 2000/NT/XP/2003 server, OPOS |
|
|
Software Utilities |
Firmware/NV Image download & Virtual Memory switch Manager |
|
|
Weight |
2.8 Kg |
|
|
External Dimensions (W x D x H) |
156 x 247.72 x 174.4 mm Standard model with internal power adapter |
|
|
156 x 247.72 x 132 mm External power adapter |
||
|
Reliability |
Mechanism |
MCBF 7.5 million Lines |
|
Printhead |
150 million Characters |
|
|
Auto Cutter |
1 million cuts |
|
|
EMC/Safety Standards |
CE Class A, FCC Class A, UL1950, VCCI Class A |
|
|
Power Supply (Adapter) |
AC100 ~230V± 10%(include) DC 24V,1.3A |
|
