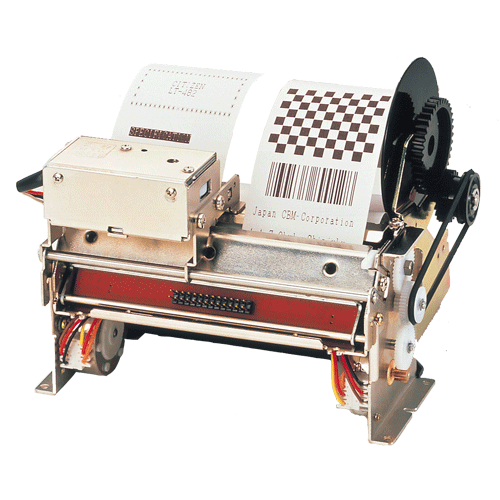

Line Thermal Printing
-
Heavy duty Metal Frame
-
Lightweight
-
High Reliability
-
2 x 50 mm Paper width
-
24V operation
?
|
Paper |
T5080 |
Thermal Paper rolls 50 x 80 mm |
|
Auto Cutter |
AC4P or AC4F |
Auto cutter for the LT483 (F for Full cut) |
|
Rewind |
AW4H or AW4V |
Paper rewind device for the LT483 |
|
Printing Method |
Line Thermal Dot Printing |
|
|
Total Dots |
832 Dot/Lines |
|
|
Dot Density |
8 Dots/mm |
|
|
Printing width |
44 mm x 2 |
|
|
Printing Speed |
Max. 100 mm/sec (800 dot-lines/sec) |
|
|
Sensors |
Head Temperature |
Thermistor |
|
Paper Presence |
Photo Interrupter |
|
|
Head up |
Mechanical switch |
|
|
Voltage |
Vp |
DC 24V +/- 5% |
|
Vdd |
DC 5V +/- 5% |
|
|
Current Head Vp=5V |
Approx. Max. 1.2A |
|
|
Current Motor Vp=5V |
Approx. Max. 0.96A |
|
|
Paper feeding pitch |
0.125 mm |
|
|
Paper Type |
Thermal |
|
|
Paper Width |
49.5 mm |
|
|
Reliability |
Head Pulse Resistance |
100,000,000 pulse or more |
|
Head Wear Resistance |
100 Km or more |
|
|
Operating Environment |
Temperature |
0 ~ 45 °C |
|
Humidity |
35 ~ 85% RH |
|
|
Storage Environment |
Temperature |
-20 ~ 60 °C |
|
Humidity |
10 ~ 90% RH |
|
|
External Dimensions (W x D x H) |
LT483: 155.2 x 60 x 71.5 mm LT483CF: 155.2 x 67 x 98.9 mm LT483CP: 155.2 x 67 x 100.2 mm |
|
|
Weight |
LT483: Approx. 560g LT483CF: Approx. 750g LT483CP: Approx. 760g |
|
