Line Thermal Printing
-
Ultra Compact Design
-
Lightweight
-
High Reliability
-
80 mm Paper width
-
5V operation
-
Fixed or removable Platen
-

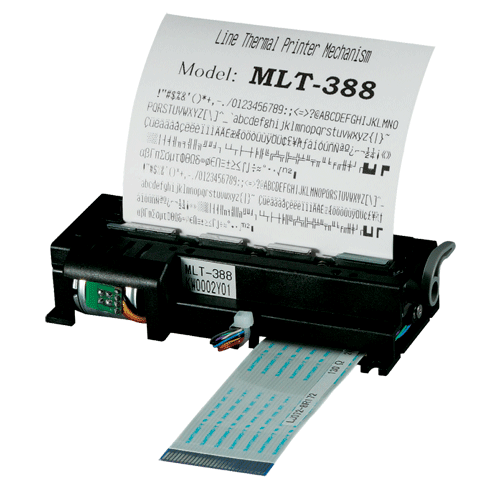

MLT-388: Fixed
-
MLT-389: removable
-
??
|
Paper |
T8080 |
Thermal Paper rolls 80 x 80 mm |
|
T80100 |
Thermal Paper rolls 80 x 100 mm |
|
|
Paper Cutter |
ACS238 |
Auto Cutter for MLT-388 |
|
Control Chip |
202LA-00 |
Gate Array |
|
Control Board |
BD2-3880U |
Control Board for MLT-388 Both Parallel and RS232 Interface |
|
BD2-3890U |
Control Board for MLT-389 Both Parallel and RS232 Interface?? |
|
Printing Method |
Line Thermal Dot Printing |
|
|
Total Dots |
576 Dot/Lines |
|
|
Dot Density |
8 Dots/mm |
|
|
Printing width |
72 mm |
|
|
Printing Speed |
Max. 60 mm/sec (480 dot-lines/sec) |
|
|
Sensors |
Head Temperature |
Thermistor |
|
Paper Presence |
Photo Interrupter |
|
|
Head up |
Mechanical switch |
|
|
Voltage |
VH |
DC 4.2 ~ 8.5V |
|
Vp |
DC 4.2 ~ 8.5V |
|
|
Vdd |
DC 4.75 ~ 5.25V |
|
|
Current Head Vp=5V |
Approx. Max. 2.5A |
|
|
Current Motor Vp=5V |
Approx. Max. 0.5A |
|
|
Paper feeding pitch |
0.125 mm |
|
|
Paper Type |
Thermal |
|
|
Paper Width |
80 mm |
|
|
Paper Thickness |
65 µm |
|
|
Reliability |
Head Pulse Resistance |
10,000,000 pulse or more |
|
Head Wear Resistance |
50 Km or more |
|
|
Operating Environment |
Temperature |
0 ~ 45 °C |
|
Humidity |
35 ~ 85% RH |
|
|
Storage Environment |
Temperature |
-20 ~ 60 °C |
|
Humidity |
10 ~ 90% RH |
|
|
External Dimensions (W x D x H) |
99.5 x 41 x 21 mm |
|
|
Weight |
Approx. 95g |
|
