Easy Paper Handling: Presenter feeds out paper after docket fully printed
-
Paper Auto loading
-
Bar-code Printing
-
Capable of loading large diameter roll
-
Both Serial (RS232) & Parallel (Centronics) Interface available
-
Equipped with Paper end sensor & Paper near end sensor
-
Options:
-
Jumbo Paper Roll Holder PHU-131
-
Power Supply Unit 31AD
-

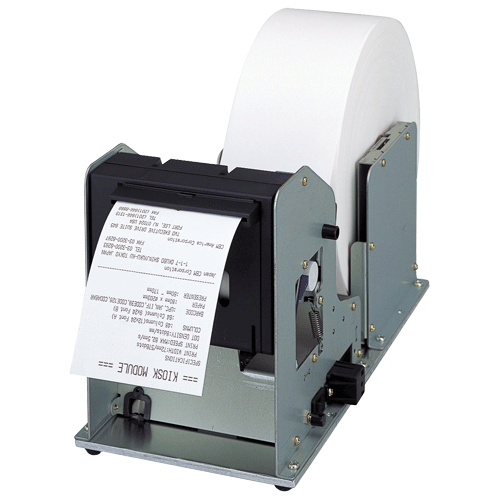

Photo shows PPU231 & PHU 131 (Bottom Plate not available)
|
Thermal Paper |
T80195 |
Jumbo Roll 80 x 195 x 25.4 |
|
Paper holder |
PHU131 |
PHU131 Paper holder |
|
Power Supply |
AD32 |
Power Supply |
|
Printing Method |
Line Thermal Printing |
|
|
Printing Width |
72mm/576 Dots |
|
|
Dot Pitch |
8 Dots/mm |
|
|
Printing Speed |
62 mm/sec (max.), 500 dotlines/sec |
|
|
Number of Columns |
48 columns (Font A), 64 Columns (Font B) |
|
|
Font Size |
1.25mm x 3.00mm (Font A: 12 x 24 dots) |
|
|
0.88mm x 3.00mm (Font B: 9 x 24 dots) |
||
|
Fonts |
Alphanumeric, International characters |
|
|
Barcode type |
UPC-A, JAN (EAN) 13/8, ITF, CODE39, CODE128, CODABAR |
|
|
Line Spacing |
4.23mm (1/6″) Selectable by command set (Min. 1/203 inch). |
|
|
Printing Paper |
Thermal Roll Paper width: 80 mm |
|
|
External diameter: ø203mm (with paper holder unit) |
||
|
Internal diameter: ø25.4mm |
||
|
Paper thickness: 60 to 85 µm |
||
|
Recommended paper: TF-50KS-E, TF-62KS-E (Nippon Paper Industries) |
||
|
Interface |
Parallel |
Centronics |
|
Serial |
RS-232C |
|
|
Input Buffer |
4K Bytes |
|
|
Command |
ESC/POS |
|
|
Sensors |
Paper near end sensor (adjustable, for PHU series) |
|
|
Paper end sensor (for PMU series) |
||
|
Black mark sensor (option) |
||
|
Power Source Voltage |
24V ±7% |
|
|
Power Consumption |
100 Watt |
|
|
Weight |
PPU: |
1.6 Kg (inc. Control Board) |
|
PHU (Paper Roll Holder) |
0.9 Kg (ex. Paper Roll) |
|
|
External Dimensions |
PPU: |
153.7 x 160 x 172mm |
|
PHU: |
132.2 x 120 x 125.2mm |
|
|
Operating Temperature/Humidity |
5 to 40°C, 35 to 85%RH (No condensation) |
|
|
Storage Temperature/Humidity |
-20 to 60 °C, 10 to 90%RH (No condensation) |
|
|
Reliability |
Head: |
50,000,000 pulses or 30 km |
|
Auto Cutter: |
300,000 cuts |
|
|
Safety Standards |
UL, C-UL, FCC class A, TUV-CE marking |
|
