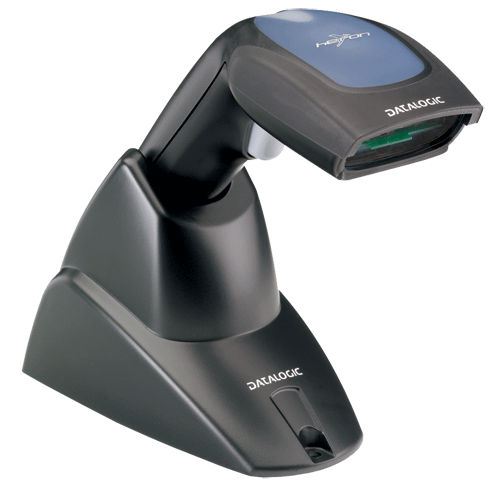

Handheld Linear Imager Scanner
-
Good read LED, “Green Spot” on the code
-
High first pass rate
-
Several models available
-
Intuitive aiming in hands-free applications
-
Datalogic “Green Spot”
-
Stand included in the package
-
Complete data formatting and data editing
-
GS1 DataBar™ (RSS) decoding capability
-
Sunrise 2005 Compliant
|
Hands free Stand |
DLHERSTAND |
Hands free Stand for Heron™ |
|
Adaptor |
AD-DL5VR |
5V Regulated Power Supply |
|
Sensor |
CCD Solid State (2048 Pixels) |
|
Lightsource |
Visible Red LED |
|
Depth of field |
near contact to 21 cm (EAN 13 mil) |
|
Scan rate |
256 Scan/sec |
|
Resolution |
Max. 0.1mm/4 mils |
|
Print Contrast |
15% or higher |
|
Reading Indicators |
Good Read LED, “Green spot” on the code, beeper |
|
Interface |
USB, RS232, Wedge & Wand |
|
Symbologies supported |
GS1 Databar, 2/5 family, Code 39 (plus Code 32 Cip 39), EAN/UPC, ISBN/ISSN, EAN 128, Code 128, ISBT 128, Code 93, Code 11, CODABAR, TELEPEN, PLESSEY, Code MSI, Code Delta IBM |
|
Programming method |
Manual: Reading special bar codes Automatic: (with RS-232) S/W commands through the serial port Sm@rtSet: Windows configuration program |
|
Dimensions (H x W x L) |
172 x 65 x 94 mm |
|
Weight |
160g |
