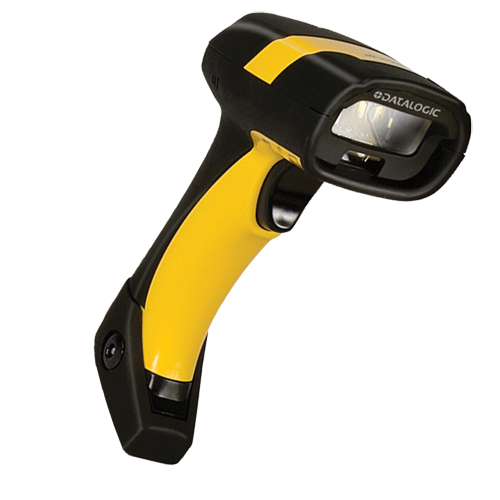

Handheld Laser Scanner
-
Reads most common linear bar codes including GS1 Databar and PDF417
-
Standard Range (contact up to 1 m) and Auto Range (10 cm 10 m) optic models available
-
Drop resistance to 2 m
-
User interface: loud beeper and Datalogic 3GL™good read feedback Good read LED, “Green Spot” on the code
-
Built-in multiple interface (RS-232, Keyboard Wedge, Wand and USB)
-
Undecoded TTL Laser Out Model
-
3 Year Limited Warranty
|
Hands free Stand |
DLSTD8000 |
Hands free Stand for PowerScan 8000 Series |
|
Holster |
DLHLS8000 |
HLS-8000 Universal Holster |
|
Power supply |
AD-DL12VR |
12V Power adapter |
|
Cables |
CAB-DL433 |
RS232 with Power inlet 9P Fem Straight |
|
CAB-DL434 |
RS232 with Power inlet 9P Fem Coiled |
|
|
CAB-DL436 |
Wedge PS/2 Straight |
|
|
CAB-DL437 |
Wedge PS/2 Coiled |
|
|
CAB-DL438 |
USB Type A Straight |
|
|
CAB-DL439 |
USB Type A Coiled |
|
Sensor |
Laser |
|
Light source |
Visible Laser Diode (VLD) 630 – 680 nm |
|
Depth of field |
Standard Laser: Near contact to 1 m Auto ranging model: 10 cm to 10 m |
|
Scan rate |
35 ± 5 scans/sec |
|
Resolution |
0.076 mm/3 mil (D/M83X0); 0.19 mm/7.5 mil (D/M83X0 Auto Range) |
|
Print Contrast |
15% or higher |
|
Ambient Light Conditions |
Immune to light exposure in offices, facilities, and direct exposure to sunlight |
|
Scan Width |
16.5 cm at 17.8 cm from nose to label |
|
Pitch Angle |
5 to55º & -5 to -55º |
|
Skew Angle |
+/- 60º |
|
Tilt |
20º |
|
Reading Indicators |
Laser ON, 3 GL™ Feedback, Beeper |
|
Interface |
USB, RS232, Wedge & Wand |
|
Symbologies supported |
2/5 Family, Code 39 (plus Code 32, Cip 39), EAN/UPC, EAN 128, Code 128, Code 93, CODABAR, Code 49, Code MSI, Code 11, Code 16K, ISBN/ISSN, ISBT 128, GS1DataBar™ (formerly RSS) |
|
Programming method |
Manual: Reads special bar codes Automatic: Software commands through the RS-232 / USB interfaces Datalogic Aladdin™: Windows configuration program |
|
Drop Resistance |
Withstands 50 drops from 6.5 ft / 2 m to concrete |
|
Environmental Protection |
IP65 |
|
Weight |
295 g |
|
Warranty |
3 Year limited Factory Warranty (not on cables) |
