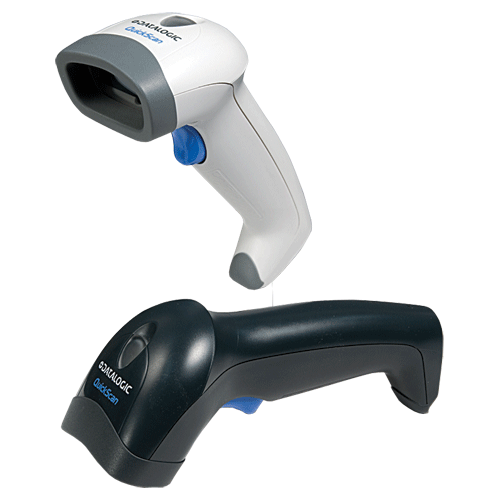

Corded Laser Bar code scanner
-
Light Weight Scanner: 128 g
-
Gun Shaped Ergonomics: Easy to handle and use
-
Multiple Interfaces: Keyboard Wedge, RS-232 and USB
-
User Replaceable Scanner Window:
-
Same Cables as Gryphon™ and Heron™: Provides a migration path for existing Datalogic handheld readers
-
Supports Linear Bar Codes and GS1 DataBar™ Symbologies: Designed for general purpose bar code scanning applications
-
Gooseneck Stand Available: Allows the customer the option of using the scanner in a hands-free mode (available in white or black)
|
Handsfree Stand |
DLQS200STAND |
Handsfree Stand, White |
|
DLQS20STAND-B |
Handsfree Stand, Black |
|
|
Window pack |
DLQS233WIN |
Replacement windows (pack 5) |
|
Adaptor |
AD-DLQS233 |
Regulated Power Supply |
|
Depth of field |
up to 27cm depending on barcode size |
|
Light source |
650nm Laser Diode |
|
Scan rate |
100 Scan/sec |
|
Min. Resolution |
5 mils |
|
Print Contrast |
30% Minimum reflectance |
|
Laser Safety Class |
Class 2 Laser Product. Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice 50 dated June 24, 2007. IEC/EN60825-1:2007 |
|
Reading indicators |
LED & Beeper |
|
Interface |
PS2 Keyboard wedge, Standard RS-232, USB |
|
Drop resistance |
Withstands drops from 1.5 m / 5 ft to concrete |
|
Water & Dust Resistance |
IP42 |
|
ESD Protection |
20 kV |
|
Symbologies supported |
Interleaved 2/5, Code 39 (and full ASCII, TriOptic), Discrete 2/5, UPC/EAN (with supplementals), UCC/EAN128, Code 128, Code 128 full ASCII, Code 93, CODABAR, Code MSI, Code 11, IATA, GS1 DataBar™ (RSS), Chinese 2 of 5 |
|
Warranty |
3 Year limited Factory Warranty (not on cable) |
|
Dimensions (H x W x L) |
170 x 61 x 70 mm |
|
Weight |
128g |
