| UFB Ready: | ? | 30/10 | ? | 100/50 | ? | 200/200 |

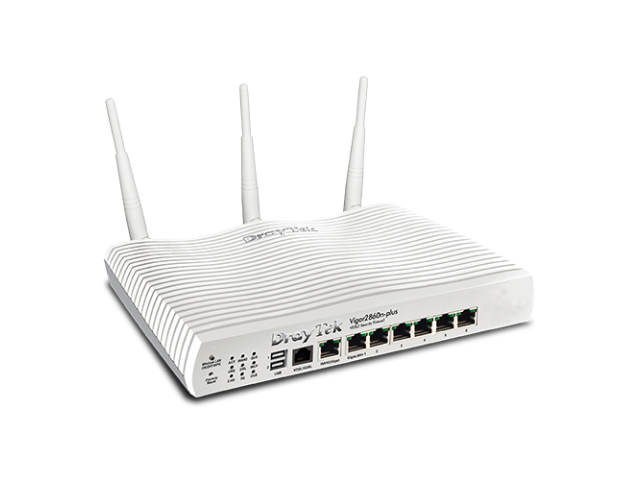

TVigor 2860Vn-plus variant (ETA Summer 2014) provides two analogue phone ports and an analogue line port provide full PSTN and VoIP integration via both the Internet (VoIP) and your regular analogue line. You can connect 1 or 2 regular telephones and the can be used independently and simultaneously for both incoming and outgoing calls.
The standard Vigor 2860n supports all 2.4Ghz band channels. The Vigor2860n-Plus model additionally supports simultaneous operation of the new 5Ghz band. The 5Ghz band is far less congested so if your PCs or other devices support the 5Ghz band, you can use that. The Vigor2860n-Plus operates both bands at the same time, so your devices can use either. If you want to add 5Ghz band support to your PC/laptop, you can use the DrayTek N65 USB adaptor.
Triple-WAN with Load Balance and Fail-Over
Built-in DSL modem for VDSL2 or ADSL2+
Additional Gigabit Ethernet & USB WAN port
VoIP (2 x FXS, 1 x PSTN)
802.11n WLAN AP with concurrent 2.4/5 GHz Dual Band & Wireless AP Management
6-port Gigabit Ethernet LAN Switch with up to 50,000 simultaneous NAT sessions
NBN Ready and IPv6
VLAN for secure and efficient workgroup management
Object-based SPI Firewall and CSM (Content Security Management) for network security
2 x USB ports for 3G/4G mobile, FTP server and network printers
32 x VPN tunnels, 16 x SSL VPN tunnels* & Central VPN Management
QoS (Layer 2&3, 802.1p & TOS/DCSP) for prioritizing video, voice, online game and data traffic
Support Smart Monitor up to 30 PCs
Support TR-069 for VigorACS SI and IGMP v3 MultiCast
Temperature Monitoring (optional: USB Thermometer)
2 year warran
The standard Vigor 2860n supports all 2.4Ghz band channels. The Vigor2860n-Plus model additionally supports simultaneous operation of the 5Ghz band. The 5Ghz band is far less congested so if your PCs or other devices support the 5Ghz band, you can use that. The Vigor2860n-Plus operates both bands at the same time, so your devices can use either. If you want to add 5Ghz band support to your PC/laptop, you can use the DrayTek N65 USB adaptor.The Vigor 2860Vn-plus router provides two analogue phone ports and an analogue line port provide full PSTN and VoIP integration via both the Internet (VoIP) and your regular analogue line. You can connect 1 or 2 regular telephones and the can be used independently and simultaneously for both incoming and outgoing calls.
- Triple-WAN with Load Balance and Fail-Over
- Built-in DSL modem for VDSL2 or ADSL2+
- Additional Gigabit Ethernet & USB WAN port
- VoIP (2 x FXS, 1 x PSTN)
- 802.11n WLAN AP with concurrent 2.4/5 GHz Dual Band & Wireless AP Management
- 6-port Gigabit Ethernet LAN Switch with up to 50,000 simultaneous NAT sessions
- UFB Ready and IPv6
- VLAN for secure and efficient workgroup management
- Object-based SPI Firewall and CSM (Content Security Management) for network security
- 32 x VPN tunnels, 16 x SSL VPN tunnels* & Central VPN Management
- QoS (Layer 2&3, 802.1p & TOS/DCSP) for prioritizing video, voice, online game and data traffic
- Support Smart Monitor up to 30 PCs
- Support TR-069 for VigorACS SI and IGMP v3 MultiCast
- Temperature Monitoring (optional: USB Thermometer)
- 2 year warranty
Vigor 2860 ADSL/VDSL Series – Technical Specification
Physical Interfaces:
LAN Ports (Switch)
6 X Gigabit Ethernet (1000Mb/s) Ports
Port-Based VLAN (Inclusive/Exclusive Groups)
802.1q VLAN Tagging
WAN Ports:
WAN1 : ADSL/VDSL, RJ11
WAN2 : Gigabit Ethernet (1000Mb/s) Ethernet for load balance and WAN failover
WAN3 : USB Port for 3G Cellular Modem or Printer
Phone Ports : 2 x BT Type sockets. FXS type. V2860Vn only.
Line Port : For POTS/PSTN voice line connection (cable included). V2860Vn only.
Performance:
Firewall: Up to 200Mb/s
IPSec VPN: Up to 50Mb/s
ADSL Compatibility:
ANSI T1.413 Issue2
ITU-T G.992.1 G.dmt (ADSL)
ITU-T G.992.2 G.lite
ITU-T G.992.3 ADSL2
ITU-T G.992.5 ADSL2+
Annex L (READSL)
Annex A
Annex M
ANFP Issue 3 Compliant/Certified (for Annex A & Annex M)
DSL Forum : TR-048/67 & TR-100
VDSL Compatibility:
BT Infinity Option 1 & Option 2 Compatible
ITU-T VDSL2 G.993.2
ITU-T G.993.1, G.997.1
Band Plan: G.998, G.997
Annex A, Annex B, Annex C
VDSL2 Profile: 8a, 8b, 8c, 8d, 12a, 12b, 17a, 30a
OLR, UPBO, DPBO Supported
US0 Supported
Loop Diagnostic Mode
DSL Forum WT-114
Load Balance/Failover Features:
Outbound Policy-Based Load-Balance
WAN Connection Fail-over
BoD (Bandwidth on Demand)
Vigor 2860 ATM Protocols (DSL):
RFC-2684/RFC-1483 Multiple Protocol over AAL5
RFC-2516 PPP over Ethernet
RFC-2364 PPP over AAL5
PPPoE pass through LAN/WLAN
PPPoE/PPPoA Relay
Transparent bridge for MPoA
Multiple PVC support for Triple Play Applications (up to 8 simultaneous)
Wireless LAN Features (‘n’ and ‘n-plus’ Models Only):
802.11n Compatible with backward support for 802.11b/g
802.11a ( (Vigor 2860n-plus only)
Simultaneous Dual Band (2.4Ghz/5Ghz) (Vigor 2860n-plus only)
Multiple SSID : Create up to 4 virtual wireless LANs (independent or joined)
Packet Aggregation and Channel Bonding
Optional Higher Gain or directional aerials available – Click Here.
Active Client list in Web Interface
Wireless LAN Isolation (from VLAN groups and wired Ethernet interfaces)
64/128-bit WEP Encryption
WPA/WPA2 Encryption
Switchable Hidden SSID
Restricted access list for clients (by MAC address)
Time Scheduling (WLAN can be disabled at certain times of day)
Access Point Discovery
WDS (Wireless Distribution system) for WLAN Bridging and Repeating
802.1x Radius Authentication
Wireless VLAN
Wireless Rate-Control
Automatic Power Management
802.11e WMM (Wi-Fi Multimedia)
VoIP Features (Vigor2860Vn-plus only):
Protocols: SIP, RTP / RTCP
12 SIP Registrar Accounts (for up to 12 VoIP providers)
Line port for PSTN Passthrough (integrates POTS line)
Auto-fallback to PSTN under power/Internet failure
G.168 Line Echo-cancellation
Automatic Gain Control
Jitter Buffer ( 125ms )
Voice Codecs:
G.711 A / µ Law
G.723.1
G.726
G.729 A / B
VAD / CNG
Tone Generation: DTMF , Dial , Busy , Ring Back , Call Progress
DTMF Transmission: In Band / Out Band ( RFC-2833 ) / SIP info
FAX / Modem Support G.711 Pass-through
T.38 for FAX
Supplemental Services:
Caller ID
Call Hold / Retrieve
Call Waiting
Call Waiting with Caller ID
Call Transfer
Call Forwarding ( Always , On Busy and On No Answer )
DND (Do not Disturb)
Call Barring ( Incoming / Outgoing )
MWI ( Message Waiting Indicator ) ( RFC-3842 )
Hotline (Dial preset number when handset lifted)
WAN Protocols (Ethernet):
DHCP Client
Static IP
PPPoE
PPTP
L2TP *
BPA
Firewall & Security Features:
CSM (Content Security Management):
URL Keyword Filtering – Whitelist or Blacklist specific sites or keywords in URLs
Block Web sites by category (e.g. Adult, Gambling etc. Subject to subscription)
Prevent accessing of web sites by using their direct IP address (thus URLs only)
Blocking automatic download of Java applets and ActiveX controls
Blocking of web site cookies
Block http downloads of file types :
Binary Executable : .EXE / .COM / .BAT / .SCR / .PIF
Compressed : .ZIP / .SIT / .ARC / .CAB/. ARJ / .RAR
Multimedia : .MOV / .MP3 / .MPEG / .MPG / .WMV / .WAV / .RAM / .RA / .RM / .AVI / .AU
Time Schedules for enabling/disabling the restrictions
Block popular P2P (Peer-to-Peer) file sharing programs
Block Instant Messaging programs (e.g. IRC, MSN/Yahoo Messenger etc.)
Multi-NAT, DMZ Host
Port Redirection and Open Port Configuration
Policy-Based Firewall
MAC Address Filter
SPI ( Stateful Packet Inspection ) with new FlowTrack Mechanism
DoS / DDoS Protection
IP Address Anti-spoofing
E-Mail Alert and Logging via Syslog
Bind IP to MAC Address
Bandwidth Management:
QoS
Guaranteed Bandwidth for VoIP
Class-based Bandwidth Guarantee by User-Defined Traffic Categories
Layer 2&3 (802.1p & TOS/DCSP)
DiffServ Code Point Classifying
4-level Priority for each Direction (Inbound / Outbound)
Bandwidth Borrowed
Temporary (5 minute) Quick Blocking of any LAN Client
Bandwidth / Session Limitation
Network/Router Management:
Web-Based User Interface (HTTP / HTTPS)
CLI ( Command Line Interface ) / Telnet / SSH
Administration Access Control
Configuration Backup / Restore
Built-in Diagnostic Function
Firmware Upgrade via TFTP / FTP
Logging via Syslog
SNMP v3 Management with MIB-II
TR-069
TR-104
VPN Facilities:
Up to 32 Concurrent VPN Tunnels (incoming or outgoing)
Tunnelling Protocols: PPTP, IPSec, L2TP, L2TP over IPSec
IPSec Main and Agressive modes
Encryption : MPPE and Hardware-Based AES / DES / 3DES
Authentication : Hardware-Based MD5 and SHA-1
IKE Authentication : Pre-shared Key or X.509 Digital Signature
SSL VPN for teleworkers – Up to 5 simultaneous users. Proxy or tunnel
LAN-to-LAN & Teleworker-to-LAN connectivity
DHCP over IPSec
NAT-Traversal ( NAT-T )
Dead Peer Detection (DPD)
VPN Pass-Through
MOTP (Mobile One Time Password)
Network Features:
DHCP Client / Relay / Server
DHCP Option 66 support
Dynamic DNS
NTP Client (Synchronise Router Time)
Call Scheduling (Enable/Trigger Internet Access by Time)
RADIUS Client
Microsoft™ UPnP Support
Routing Protocols:
Static Routing
RIP V2
Operating Requirements:
Rack Mountable (Optional Vigor RM1 mounting bracket required)
Wall Mountable
Temperature Operating : 0°C ~ 45°C
Storage : -25°C ~ 70°C
Humidity 10% ~ 90% (non-condensing)
Power Consumption: 18 Watt Max.
Dimensions: L240.96 * W165.07 * H43.96 ( mm )
Operating Power: DC 15V (via external PSU, supplied)
Warranty : Two (2) Years RTB
Power Requirements : 220-240VAC
