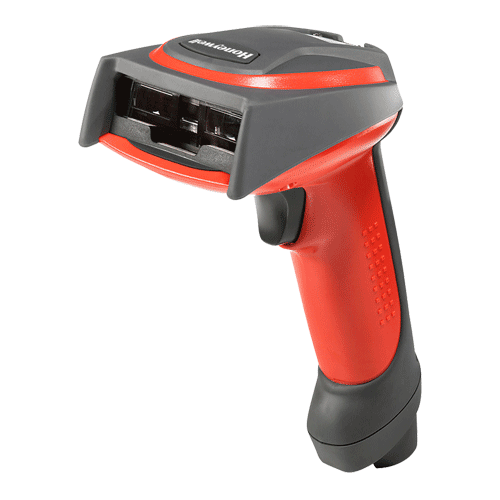

High Performance Industrial Hand Held Scanner
-
Powered by Adaptus™ Imaging technology
-
Solid State Heavy Duty Construction, No moving parts!
-
Operational after 50 drops from 2 m onto Concrete
-
IP54 Rating
-
3 Factory Year Warranty
-
Very Fast Decode Rate
-
Linear Imaging Technology
-
Bright Sharp Aiming Line
-
Also available with laser aimer
-
Increased Reading Distance
-
Used Indoors and Outdoors in Bright Sunlight
-
Optical and Audible Read Confirmation
-
Exceptional Read Performance
-
Manual, Presentation Mode or Auto Trigger
-
Reads Degraded and damaged bar-codes
-
Powerful, Flexible Architecture
-
Fully Programmable
-
Hands Free Stand or Counter Holder available
?
|
Handsfree Stand |
HFSTAND5 |
Handsfree Stand for IT46/48/56/5800 |
|
Power Supply |
AD5VR10P |
Optional Power Supply |
|
Reading distance |
Narrow width |
Depth of Field |
|
7.5 mil |
16.5 – 38 cm |
|
|
13 mil (100% UPC) |
6.4 – 71 cm |
|
|
15 mil |
6.4 – 78.7 cm |
|
|
20 mil |
3.8 – 107 cm |
|
|
55 mil |
10.2 – 208 cm |
|
|
Reading Width |
15 mil code: 38.1 cm from nose, 25.4 cm wid |
|
|
Resolution |
7.5 mil at 22.9cm distance |
|
|
Pitch Angle |
+/- 65deg. |
|
|
Skew Angle |
+/- 65 deg |
|
|
Decode Rate |
Up to 270 Decodes Per Second |
|
|
Scan Rate |
Up to 270 Scans Per Second |
|
|
illumination |
630NM Visible Red LED |
|
|
Interfaces |
PS2 Keyboard Wedge |
|
|
RS-232 (May require external power supply) |
||
|
USB |
||
|
Many other common interfaces |
||
|
Symbologies support |
Codabar,CODE 3 of 9 including PARAF, Interleaved 2 of 5, Code 2 of 5, Matrix 2 of 5, Code 11, Code 93, Code 128, UPC, EAN/JAN, China postal code, RSS. |
|
|
Warranty |
3 Year Factory Warranty (not on cable, conditions apply) |
|
|
Operation Mode |
Manual, Presentation Mode or Auto Trigger. |
|
