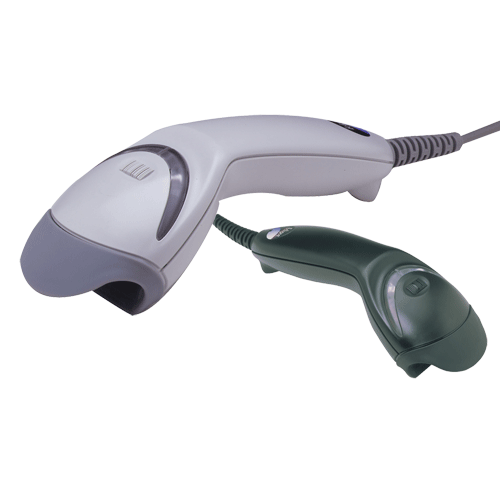

Handheld Laser Scanner
-
Automatic trigger operation
-
RSS Decoding Capability
-
Supports most popular host interfaces
-
User-replaceable, single cable interface to host
-
Easy programming via software or barcodes in the manual
-
Codegate® data transmission technology
-
Sunrise 2005 compliant
-
OPOS and JPOS system compatible
-
Custom edit the bar code data
-
Available in Light Grey and Black
?
|
Adaptor |
AD-MS5VR06N |
5V Regulated Power Supply? |
|
Scan pattern |
Single Line |
|
Scan Rate |
72 +/- 2 Lines/sec |
|
Width of Field |
49 mm at face, 195 mm at 140 mm |
|
Depth of Field |
0~140 mm for 13 mil bar codes |
|
Minimum Bar width |
4 mil |
|
Light Source |
Visible Laser Diode 650 nm +/- 10 nm |
|
Decoding Capability |
Decodes all standard 1D, RSS14, RSS Limited and RSS expanded Barcodes |
|
Communications |
PC Keyboard wedge, RS232, OCIA, Light pen emulation, IBM 468X/469X, Stand Alone Keyboard, USB. |
|
Shock |
Normal operation after 30 drops to concrete from 1.5 m |
|
Dimensions |
(L)16.9 x (H)3.1~3.5 x (W) at handle 4, at Head 6.3 cm |
|
Weight |
97 g |
|
Factory Warranty |
3 years |
|
EMC/Safety Standards |
TUV, UL60950(USA), CISPR22-B, IEC60285-1 Class 1 |
