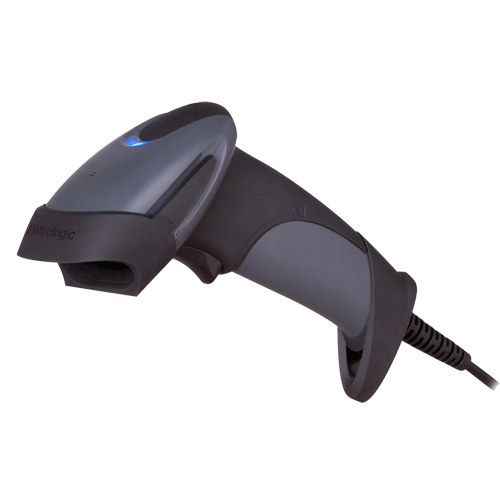

Handheld Laser Scanner
-
Automatic trigger operation
-
Ergonomic Design
-
RSS Decoding Capability
-
Supports most popular host interfaces
-
Automatic In-stand detection
-
Configuration with MetroSelect or MetroSet2 via RS232 or USB
-
Flash Memory for easy upgrades
-
Optional EAS deactivation Function
?
|
Adaptor |
AD-MS5VR06N |
5V Regulated Power Supply |
|
Scan pattern |
Single Line |
|
Scan Rate |
100 ScanLines/sec |
|
Minimum Element Width |
5 mil (0.127mm) |
|
Print Contrast |
35% minimum reflectance difference |
|
Width of Field |
50 mm at face, 300 mm at 305 mm |
|
Depth of Field |
0-305 mm |
|
Light Source |
Visible Laser Diode 650 nm +/- 10 nm |
|
Indicators |
Blue = unit powered, ready to scan, White = good read, Yellow steady = CodeGate is active |
|
Decoding Capability |
Decodes all standard 1D, RSS14, RSS Limited and RSS expanded Barcodes |
|
Communications |
PC Keyboard wedge, RS232, IBM 468X/469X,USB. |
|
Shock |
Designed to withstand 1.5 m drops |
|
Dimensions |
(L)100 x (H)160 x (W) at handle 28, at Head 65 mm |
|
Weight |
150 g |
|
Factory Warranty |
5 years |
|
EMC/Safety Standards |
FCC Class B/IEC60285-1 Class 1 |
