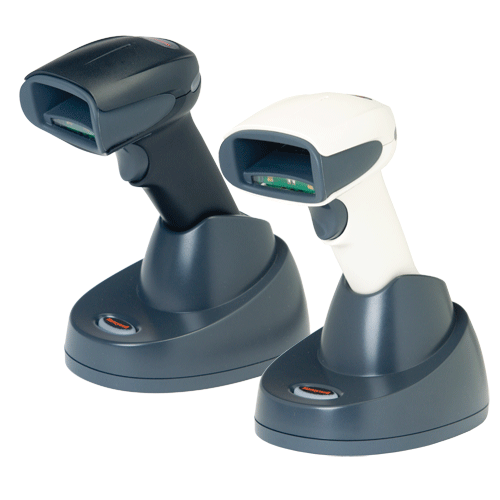

High Performance Cordless Hand Held Scanner
-
Powered by Adaptus™ Imaging technology
-
Bluetooth® Wireless Connectivity up to 10m
-
Long lasting Li-Ion Battery
-
Custom sensor optimized for bar code scanning improves scanning aggressiveness
-
Solid State Heavy Duty Construction, No moving parts!
-
Area Imaging Technology
-
Bright Sharp Green Aiming Line
-
Fast Decoding Rate
-
Omni Directional Reading
-
Optical and Audible Read Confirmation
-
Exceptional Read Performance
-
Reads Degraded and damaged bar-codes
-
Powerful, Flexible Architecture
-
Fully Programmable
?
|
Base |
IT19CBASE |
Charge/Communication base for IT1902 |
|
IT19CFBASE |
Charge/Communication base for IT1902 with FIPS encryption |
|
|
Hands free Stand |
HFSTAND-19 |
Hands free Ratchet Stand for IT1900 |
|
Power Supply |
AD-MS5VR10N |
Optional Power Supply |
|
OCR Upgrade |
IT19OCRLIC |
OCR Upgrade Licence |
|
Reading distance |
Narrow width |
Depth of Field HD |
Depth of Field SR |
|
5 mil Code 39 |
8 – 76 mm |
30 – 89 mm |
|
|
13 mil UPC |
15 – 124 mm |
13 – 323 mm |
|
|
20 mil Code 39 |
15 – 173 mm |
15 – 411 mm |
|
|
6.7 mil PDF417 |
0 – 86 mm |
18 – 140 mm |
|
|
10 mil Data Matrix |
0 – 84 mm |
18 – 140 mm |
|
|
20 mil QR |
0 -140 mm |
0 – 262 mm |
|
|
Resolution |
|
HD Focus |
SR Focus |
|
Resolution 1D Code 39 |
3 mil |
5 mil |
|
|
Resolution 2D Data Matrix |
5 mil |
6.7 mil |
|
|
Scan Pattern |
Area Image 838 x 640 |
||
|
Motion Tolerance |
Up to 610 cm/s for 13 mil UPC at optimal focus |
||
|
Scan Angle |
|
HD Focus |
SR Focus |
|
Horizontal |
41.4º |
42.4º |
|
|
Vertical |
32.2º |
33º |
|
|
Pitch, Skew |
45º, 65º |
||
|
Symbol Contrast |
20% Minimum reflectance difference |
||
|
Ambient Light |
0 to 100,000 Lux (full Sunlight) |
||
|
Mechanical Shock |
Operational after 50 Drops from 1.0m to concrete |
||
|
Environmental Sealing |
IP41 |
||
|
Symbologies support |
Linear |
Codabar, CODE 3 of 9 including PARAF, Interleaved 2 of 5, Code 2 of 5, Matrix 2 of 5, Code 11, Code 93, Code 128, UPC, EAN/JAN, RSS. |
|
|
2 Dimensional |
PDF417, MicroPDF417, Maxicode, Data Matrix, QR Code, Aztec, Aztec Mesas, Code 49 & EAN-UCC Composite |
||
|
Postal |
Australian 4-state, Postnet, Planet Code, British Post, Canadian Post, Japanese Code, KIX |
||
|
OCR Fonts (Optional) |
OCR-A, OCR-B |
||
|
Host Interfaces |
PS2 Keyboard Wedge |
||
|
RS-232 (May require external power supply) |
|||
|
USB |
|||
|
IBM 46xx (RS-485) |
|||
|
Radio |
2.4 to 2.5 GHz (ISM Band) Adaptive Frequency Hopping Bluetooth v2.1 Class 2 |
||
|
Range |
10m line of sight |
||
|
Data Rate |
3 Mbits/s |
||
|
Transmission rate |
2.1 Mbits/s |
||
|
Battery |
1800 mAh Li-ion |
||
|
Number of scans |
Up to 50,000 scans per charge |
||
|
Expected Hours of Operation |
14 Hours |
||
|
Expected Charge Time |
4.5 Hours |
||
|
Operating Power |
Charging: 5W (1 A @ 5 VDC) |
||
|
Standby Power |
0.5W (100mA @ 5 VDC) |
||
|
Operating Temprature |
Scanner 0º ~ 50º Base: Charging 5º ~ 40º, non Charging 0º ~ 50º |
||
|
Relative Humidity |
0 ~ 95% non condensing |
||
|
Warranty |
3 Year Factory Warranty (not on cable, conditions apply) |
||
|
Dimensions L x H x W |
Scanner: 10.4 x 16.0 x 7.1 cm Base: 13.2 x 8.1 x 10.2 cm |
||
|
Weight |
Scanner: 214 g Base: 179 g |
||
|
Operation Mode |
Manual, Presentation Mode or Auto Trigger. |
||
