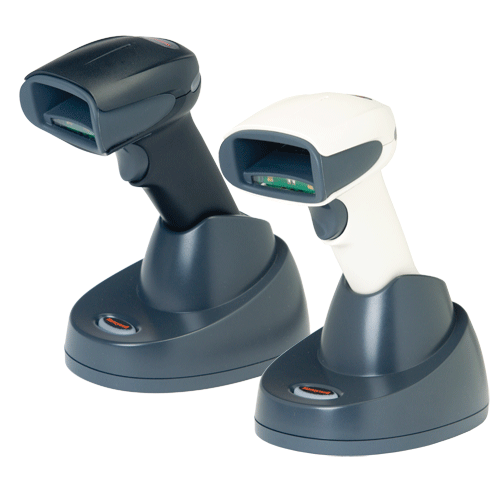

Honeywell Xenon 1902 Cordless Area Imager Scanner
Honeywell Xenon 1902 Main Features:
-
High Performance Cordless Hand Held Scanner
-
Powered by Adaptus® Imaging technology
-
Bluetooth® Wireless Connectivity up to 10m
-
Long lasting Li-Ion Battery
-
Custom sensor optimized for bar code scanning improves scanning aggressiveness
-
Solid State Heavy Duty Construction, No moving parts!
-
Area Imaging Technology
-
Bright Sharp Green Aiming Line
-
Fast Decoding Rate
-
Omni Directional Reading
-
Optical and Audible Read Confirmation
-
Exceptional Read Performance
-
Reads Degraded and damaged bar-codes
-
Powerful, Flexible Architecture
-
Fully Programmable
Description
IT1902BGKIT-U
IT1902 SR Focus with Communications/Charge Cradle and USB Cable Black
IT1902WHHDKIT-U
IT1902 HD Focus white disinfectant-ready housings with Communications/Charge Cradle and USB Cable
Order Code
Description
Base
IT19CBASE
Charge/Communication base for IT1902
IT19CFBASE
Charge/Communication base for IT1902 with FIPS encryption
Hands free Stand
HFSTAND-19
Hands free Ratchet Stand for IT1900
Power Supply
AD-MS5VR10N
Optional Power Supply
OCR Upgrade
IT19OCRLIC
OCR Upgrade Licence
Reading distance
Narrow width
Depth of Field HD
Depth of Field SR
5 mil Code 39
8 – 76 mm
30 – 89 mm
13 mil UPC
15 – 124 mm
13 – 323 mm
20 mil Code 39
15 – 173 mm
15 – 411 mm
6.7 mil PDF417
0 – 86 mm
18 – 140 mm
10 mil Data Matrix
0 – 84 mm
18 – 140 mm
20 mil QR
0 -140 mm
0 – 262 mm
Resolution
HD Focus
SR Focus
Resolution 1D Code 39
3 mil
5 mil
Resolution 2D Data Matrix
5 mil
6.7 mil
Scan Pattern
Area Image 838 x 640
Motion Tolerance
Up to 610 cm/s for 13 mil UPC at optimal focus
Scan Angle
HD Focus
SR Focus
Horizontal
41.4°
42.4°
Vertical
32.2°
33°
Pitch, Skew
45°, 65°
Symbol Contrast
20% Minimum reflectance difference
Ambient Light
0 to 100,000 Lux (full Sunlight)
Mechanical Shock
Operational after 50 Drops from 1.0m to concrete
Environmental Sealing
IP41
Symbologies support
Linear
Codabar, CODE 3 of 9 including PARAF, Interleaved 2 of 5, Code 2 of 5, Matrix 2 of 5, Code 11, Code 93, Code 128, UPC, EAN/JAN, RSS.
2 Dimensional
PDF417, MicroPDF417, Maxicode, Data Matrix, QR Code, Aztec, Aztec Mesas, Code 49 & EAN-UCC Composite
Postal
Australian 4-state, Postnet, Planet Code, British Post, Canadian Post, Japanese Code, KIX
OCR Fonts (Optional)
OCR-A, OCR-B
Host Interfaces
PS2 Keyboard Wedge
RS-232 (May require external power supply)
USB
IBM 46xx (RS-485)
Radio
2.4 to 2.5 GHz (ISM Band) Adaptive Frequency Hopping Bluetooth v2.1 Class 2
Range
10m line of sight
Data Rate
3 Mbits/s
Transmission rate
2.1 Mbits/s
Battery
1800 mAh Li-ion
Number of scans
Up to 50,000 scans per charge
Expected Hours of Operation
14 Hours
Expected Charge Time
4.5 Hours
Operating Power
Charging: 5W (1 A @ 5 VDC)
Standby Power
0.5W (100mA @ 5 VDC)
Operating Temprature
Scanner 0° ~ 50°C
Base: Charging 5° ~ 40°C, non Charging 0° ~ 50°C
Relative Humidity
0 ~ 95% non condensing
Warranty
3 Year Factory Warranty (not on cable, conditions apply)
Dimensions L x H x W
Scanner: 10.4 x 16.0 x 7.1 cm
Base: 13.2 x 8.1 x 10.2 cm
Weight
Scanner: 214 g
Base: 179 g
Operation Mode
Manual, Presentation Mode or Auto Trigger.
