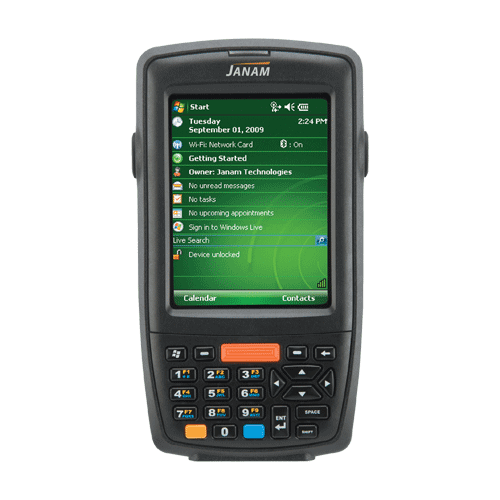

Rugged Ergonomic lightweight Design
-
Superior 3.5? QVGA Display
-
Operational after multiple drops from 1.2m onto concrete
-
Lithium Ion High capacity Battery
-
752 x 480 pixel CMOS Area Imager/scanner, Powered by Adaptus® Imaging technology
-
Microsoft Windows Mobile 6.1
-
Fast and Reliable Wireless Connectivity
-
Powerful Processor and Network Connections
-
Analogue Resistive Touch panel
-
Numeric or QWERTY Keyboard
?
|
Cradle |
JA-XM66CRADLE-U |
Single Slot USB/Serial Cradle Kit |
|
MSR Attachment |
MSR Attachment for the XM66 |
|
|
Battery |
JA-XM66EXBATT |
Spare High Capacity Battery for XM-66 |
|
Extended Battery Cover |
Cover for High Capacity Battery |
|
|
Holster |
XM66 carrying holster with integrated belt clip and spare battery pouch |
|
|
Cover |
JA-XM66COVER |
XM66 Nylon Operating Case with clear cover |
|
Stylus |
XM66 stylus, 5 pack. |
|
|
Screen Protector |
JA-XM66SCRPROTECT |
Screen Protector for XM-66 |
|
Processor |
Freescale™ i.MX31 533 MHz |
|
|
Operating Platform |
Microsoft® Windows® Mobile 6.1 |
|
|
Memory |
256 MB DDR SDRAM x 256 MB Flash |
|
|
Memory Expansion |
User accessible Micro SD slot with High Capacity (HC) memory card support (up to 32 GB) |
|
|
Scan engine |
Adaptus® Imaging Technology, 752×480 Pixel CMOS Area Imager 1D Area Imager/scanner 2D ready (Firmware upgrade) |
|
|
Symbologies support |
1D |
China Post, Codabar, Codablock F, Code 11, Code 16K, Code 32 Pharmaceutical (PARAF), Code 39, Code 49, Code 93 and 93i, Code 128, EAN-8, EAN-13, GS1-128, GS1 Databar (RSS-144, RSS Limited, RSS Expanded), Interleaved 2 of 5, ISBT 128, Matrix 2 of 5, Korea Post, MSI, Plessey Code, PosiCode, , Straight 2 of 5 IATA (two-bar start/stop), Straight 2 of 5 Industrial (three-bar start/stop), Telepen, Trioptic Code, UPC-A, UPC-A with Extended Coupon Code, UPC-E, UPC-E1 |
|
2D (with firmware upgrade |
PDF417 (EAN-UCC Composite, MicroPDF417, PDF417, TCIF Linked Code 39, TLC39), 4-CB (4-State Customer Barcode), Australian Post, Aztec Code, Aztec Mesas, British Post, Canadian Post, Data Matrix, ID-tag (UPU 4-State), Japanese Post, KIX (Netherlands) Post, MaxiCode, OCR, Planet Code, Postnet, QR Code |
|
|
Keyboard |
Backlit Numeric Keypad or Backlit PDA Keypad (with 4 way Navigation) |
|
|
Display |
3.5? QVGA colour display (240×320), 262K Colours with Analog resistive Touch Panel, Stylus input |
|
|
I/O Ports |
USB 2.0 |
|
|
Audio |
Speaker & microphone |
|
|
Data Communications |
IrDA |
v1.2 |
|
WPAN |
Bluetooth v2.0 |
|
|
WLAN |
IEEE 802.11 a/b/g; Aruba Networks & Cisco CCX v4 certified Security: EAP (TLS, PEAP-MSCHAPv2, PEAP-GTC, PEAP-TLS, TTLS, EAP-FAST, LEAP) or PSK |
|
|
WPAN |
Bluetooth v2.0 |
|
|
Battery |
Standard |
Li-ion 3.7V, 2000mAh |
|
Extended |
Li-ion 3.7V, 4000mAh |
|
|
Sealing |
IP54 Category II rating |
|
|
Mechanical Shock |
Drop: Functional multiple drops from 1.2m onto concrete Vibration: 0.03 G²/Hz from 20Hz to 2kHz; 1 hour random wave per axis |
|
|
Electrical Static Discharge |
Air: 15kVdc Direct: 8kVdc |
|
|
Operating Temp. |
-10 ~ 50°C |
|
|
Storage Temp. |
-25 ~ 70°C |
|
|
Humidity |
5 to 90% non condensing |
|
|
Warranty |
1 Year limited Factory warranty |
|
|
H x W x D |
146 x 79 x 30.5 mm with Standard Battery |
|
|
Weight |
279g with Standard battery |
|
