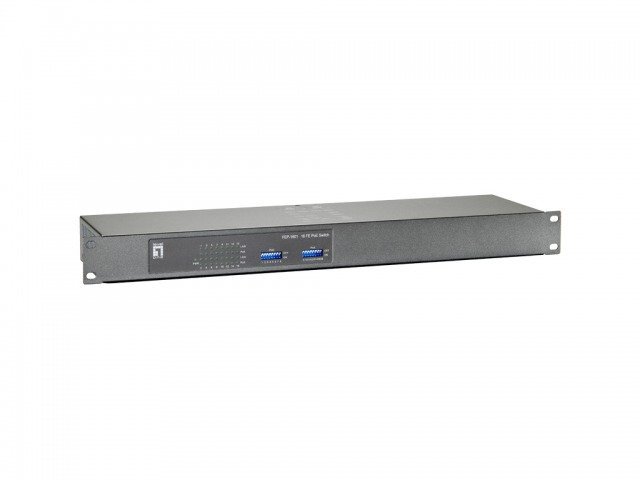

This 16-Port PoE Switch is a 10/100Mbps Fast Ethernet Switch with Power over Ethernet capability. With 16 dip switches, each PoE port can be manually set for On-Off. It supports up to 15.4W/30W on each LAN port when the corresponding port DIP switch is set ON.
Technical Specifications
Standards:
IEEE 802.3 10BaseT
IEEE 802.3u 100BaseTX
IEEE 802.3x Flow Control
IEEE 802.3af /midspan PoE compliant
Features:
MAC Address: 2K
Buffer Memory: 512K bits
Transmission Method: Store and Forward
Filtering/Forwarding Rates:
100Mbps port – 148,800pps
10Mbps port – 14,880pps
Transmission Media:
10BaseT Cat. 3, 4, 5 UTP/STP
100BaseTX Cat. 5 UTP/STP
PoE on each Port 15.4W/30W
Output PoE Pin 4, 5, 7, 8
LED Indicators:
Per Port: Link/Act with 10/100M, PoE ON/OFF
Per Unit: Power
Power Input 100-240VAC, 50~60Hz
Dimensions 440 (without rack holder) × 118 × 38 mm (L x W x H)
Weight 2.2 kg
Operating Temperature 0 to 50?
Humidity 10 to 90% RH (non-condensing)
Certifications FCC Class A, CE
