The Mako System is a combination of Customer Premise Equipment (CPE) and a Hosted Central Management System (CMS) that work together to provide a complete network connectivity and management solution for businesses.
The Mako System offers a centrally managed, turnkey solution to create broadband networks for small sites. With anytime/ anywhere access the Mako System offers real time management, reporting and proactive security in one easy to use, easy to deploy solution. Not just another router/firewall, a Mako System is a combination of two parts: network appliance and hosted Central Management System. These components work together to provide a complete network connectivity and management solution enabling you to connect, protect and control your network(s)

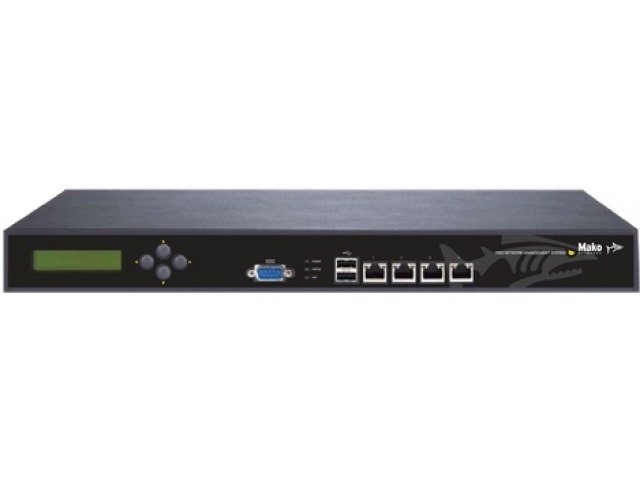

Mako 7550 Series Technical Specifications
Hardware Specifications
Processor – 1.2GHz
System Memory – 256MB
Storage – 128MB DOM
LAN Interface – 4×10/100Mbps Ports
WAN Interface 7550-A – RJ11 ADSL Port
WAN Interface 7550-E – RJ45 Ethernet Port
LED Indicators – Power, Info, Disk
LCD Screen – 2x 16 Character LCD
External Cable – Power, RJ11 to ADSL Provider’s Port (7550-A2 only)
Feature Specifications
Reporting – Usage, PC, Type, Remote VPN, SharkNet Intrusion Detection
Internet – Traffic Threshold Management, Extraordinary Usage Notification, Worm Alerts
LAN – 7550: 250 Users, Quad LAN, DHCP, Static Routes
Firewall – Inbound, Outbound, Intranet, VPN
VPN – 7550: 100 Concurrent IPSec, 40 Concurrent PPTP.
Services – Outbound Quality of Service, Dynamic DNS Support
Optional Services – Mako Guardian Content Filtering for IT Providers – Advanced Diagnostics, Syslogs
Physical and Environmental
Chassis Dimension – 426 mm x 270 mm x 44.4 mm (L x W x H)
Power Supply – ATX 220W, Input 90-264V
Operating Temperature – +0 C to +40 C
Humidity – 5% – 95% relative, non-condensing
7550 Appliance WAN Interface Models
7550-A2 Modem Specifications
ADSL Compliance
Compliant with ADSL standards
Full-rate ANSI T1.413 Issue 2 and ITU G.dmt (G.992.1)
Splitterless ITU G.lite (G.992.2)
ITU G.992.3 – ADSL2
ITU G.992.5 – ADSL2+
DMT modulation and demodulation
Rate adaptive
Max downstream 24 Mbps
Max upstream 1.4 Mbps
Supports splitterless full rate operation
Interoperable with all major DSLAMs
ATM Protocols
WAN mode support: PPPoA, PPPoE, Ethernet over ATM
LAN mode support: RFC1577
7550-E Ethernet WAN
Supported Protocols
IP
DHCP client with MAC Address spoofing
PPP over Ethernet
*Mako 7550-E must have a public IP Address on its WAN interface and not be behind a firewall
