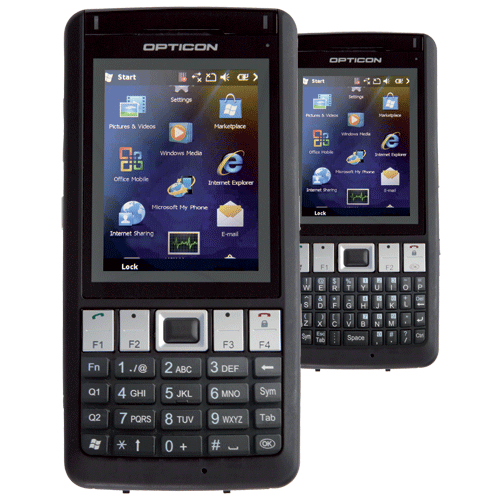

Windows Mobile™ Portable Data Terminal
-
2D Imager
-
Can withstand multiple drops to concrete from 1.5 m
-
IP-64 Rating
-
2.8 inch Colour LCD with Touch screen
-
Windows Mobile® 6.5
-
GPRS/EDGE (Quad Band 850/900/1800/1900), 3G UMTS (WCDMA band 1,II,V,VI), 3.5G UMTS (HSDPA 7.2M / HSUPA 5.76 M)
-
GPS: Integrated AGPS
-
Wifi IEEE 802.11b/g
-
Bluetooth Ver. 2.1 + EDR Class 2
-
Colour Camera 3.2 Megapixels
|
Cradle |
OPCRD21 |
USB/Serial Communication/Charging Cradle |
|
Vehicle Acc. |
OPH21CARCHG |
Car Charging kit for the H21 |
|
OPH21CARHLDKIT |
Car holder for the H21 |
|
|
Adaptor |
AD-OP6VR20 |
6V 2.0A Power supply |
|
Battery |
OPH21STBATT |
Standard Capacity Battery 3.7V 3060mAh |
|
Stylus |
OPH21STYLUS |
Standard Stylus for the H21 |
|
Processor |
Qualcomm MSM 7225 528Mhz |
|
Operating System |
Microsoft® Windows Mobile® 6.5 |
|
Software |
Excel Mobile, Powerpoint Mobile, Word Mobile, Internet Explorer, ActiveSync, Internet sharing, Pocket MSN, Phone application, Opticon scanner application, Accessories |
|
Flash Memory |
256 MB flash ROM |
|
RAM Memory |
256 MB SRAM |
|
Expansion |
User accessible microSD + HC |
|
Scan engine |
CMOS Area Sensor, 900 x 512 Pixels, Grey Scale |
|
Light Source |
Aiming Laser Diode, Illumination LED’s |
|
Scan rate |
up to 80 Frames/sec |
|
Reading Pitch Angle |
-50º to 0º to +50º |
|
Reading Skew Angle |
-50º to 0º to +50º |
|
Reading Tilt Angle |
360º |
|
Minimum Resolution |
PCS 0.9: 0.127mm/5mil |
|
Reading Distance |
Code 39 45 – 1000 mm / 1.77 – 39.37 in (0.127 mm/5mil) |
|
Symbologies support |
Barcode (1D): JAN/UPC/EAN incl. add on, Codabar/ NW-7, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of 5, ISBN-ISMN-ISSN, Matrix 2of 5, MSI/Plessey,S-Code, Telepen, Tri-Optic, UK/Plessey Postal code: Chinese Post, Korean Postal Authority code 2D code: Composite Codes, MicroPDF417, PDF417 Aztec Code, Aztec Runes, Codablock F, Datamatrix (ECC200/ECO-140), Maxicode (mode 2~5), Micro QR Code, QR Code |
|
Keyboard |
Navigation Key (Scroll & Select), function Keys, Control Keys, 1 Power Key, 2 hot Keys, 2 Phone Keys, 1 Camera Key, Reset Key, Volume Key, 2 Scan keys and 12 Alpha/Numeric keys or QWERTY Keyboard |
|
Display |
Graphic Transflective TFT LCD with touch panel, 16-bit colour with adjustable backlight Size: 2.8”, 480 x 640 pixels Mode: Portrait / Landscape |
|
Camera |
Colour 3.2 Megapixels, auto-focus, LED Flash |
|
Battery |
Rechargeable battery: Lithium-Ion Polymer 3.7V 3060mAh |
|
Lithium rechargeable |
|
|
Hot swapable (Backup Battery 6 mAh) |
|
|
Operating Temperature |
-10°C to 50°C |
|
Humidity |
up to 90% relative humidity, non-condensing |
|
Mechanical Shock |
Functional after 1.5 m (4’) drop onto concrete |
|
Sealing |
IP-64 rating |
|
H x W x D |
135 x 67 x 22 mm |
|
Weight |
235 g (including batteries) |
|
Regulatory & Safety |
Product compliance: CE, FCC, VCCI, PTCRB, GCF, RoHS, JIS-C-6802 Class 2, IEC 60825-1 Class 2, FDA CDRH Class II |
