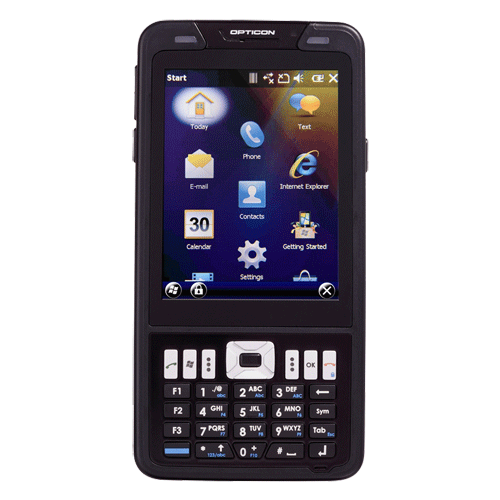

Windows Mobile™ Portable Data Terminal
-
1D Laser or 2D Imager
-
Can withstand multiple drops to concrete from 1.5 m
-
IP-65 Rating
-
3.7″ Colour LCD with Touch screen
-
Windows Mobile® 6.5.3
-
GPRS/EDGE (Quad Band 850/900/1800/1900), 3G UMTS (WCDMA band 1,II,V,VI), 3.5G UMTS (HSDPA 7.2M / HSUPA 5.76 M)
-
GPS: Integrated assisted GPS
-
Wifi IEEE 802.11b/g
-
Bluetooth Ver. 2.1 + EDR Class 2
-
IrDA 1.3
-
Colour Camera 3.2 Megapixels
-
Numeric or QWERTY Keyboard
|
Cradle |
OPCRD22 |
USB/Serial Communication/Charging Cradle |
|
OPCRD22E4 |
Quad Communication/Charging Cradle with Ethernet Communications |
|
|
Adaptor |
AD-OPH22 |
Power supply |
|
Battery |
OPH22EXBATT |
Standard Capacity Battery 3.7V 3060mAh |
|
Trigger Handle |
OPH22TRHANDLE |
Pistol-grip Trigger Handle for H22 |
|
Stylus |
OPH22STYLUS |
Standard Stylus for the H22 |
|
Processor |
Marvell PXA320 806MHz |
|
Operating System |
Microsoft® Windows Mobile® 6.5.3 |
|
Software |
Excel Mobile, Powerpoint Mobile, Word Mobile, Internet Explorer, ActiveSync, Internet sharing, Pocket MSN, Phone application, Opticon scanner application, Accessories |
|
Flash Memory |
512 MB flash ROM |
|
RAM Memory |
256 MB SRAM |
|
Expansion |
User accessible microSD + HC |
|
Scan engine |
1D Laser 2D CMOS Area Sensor, 900 x 512 Pixels, Grey Scale |
|
Light Source |
1D Laser: 650 nm visible laser diode 2D Imager: Aiming Laser Diode, Illumination LED’s |
|
Scan rate |
1D Laser: 100 scans/second 2D Imager: up to 80 Frames/sec, after auto-focus activation (100 ms after triggering) |
|
Reading Pitch Angle |
1D Laser: -35º to 0º to +35º 2D Imager: -50º to 0º to +50º |
|
Reading Skew Angle |
1D Laser: -50 to -8°, +8 to +50° 2D Imager: -50º to 0º to +50º |
|
Reading Tilt Angle |
1D Laser: -50º to 0º to +50º 2D Imager: 360º |
|
Minimum Resolution |
1D Laser: PCS 0.9: 0.127mm/5mil 2D Imager: PCS 0.9: 0.127mm/5mil |
|
Min. PCS Value |
1D Laser: 0.45 2D Imager: 0.45 |
|
Depth of Field |
1D Laser: 55 – 645 mm / 2.17 – 25.39 in, at PCS 0.9 Code 39 2D Imager: at Code 39: 45 – 110 mm (0.127 mm / 5 mil) 50 – 260 mm (0.254 mm / 10 mil) 120 – 1000 mm (1.0 mm / 39 mil) at QR Code 45 – 65 mm (0.127 mm / 5 mil) 45 – 250 mm (0.381mm / 15 mil) |
|
Symbologies support |
Barcode (1D): JAN/UPC/EAN incl. add on, Codabar/ NW-7, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of 5, ISBN-ISMN-ISSN, Matrix 2of 5, MSI/Plessey,S-Code, Telepen, Tri-Optic, UK/Plessey Postal code: Chinese Post, Korean Postal Authority code 2D code: Aztec Code, Aztec Runes, Codablock F, Composite Codes, Data Matrix (ECC200/EC0-140), Maxi Code (mode 2~5), Micro QR Code, MicroPDF417, PDF417, QR code |
|
Communication |
USB: OTG, client and host IrDA: Ver. 1.3, 2400 bps~115.2 kbps (SIR), 576 kbps~1.152 Mbps (MIR) Bluetooth: Ver. 2.1 + EDR, class 2 W-LAN: WiFi, IEEE.802.11b/g/n Telecom: GPRS/EDGE (quad-band 850/900/1800/1900), 3G UMTS (WCDMA band I,II,V,VI,VIII), 3.5G UMTS (HSDPA 7.2M / HSUPA 5.76 M) GPS: Integrated AGPS |
|
Keyboard |
Navigation key (scroll + select), function keys, 3 dedicated and 7 enabled by fn key control keys, 1 power key, Windows Mobile key, OK 2 phone keys, reset key, volume key, 4 scan keys, reconfigurable and 12 Alpha/Numeric keys or QWERTY Keyboard |
|
Display |
Blanview TFT LCD, 262k colour display with touch screen Size: 3.7”, 480 x 640 pixels Mode: Portrait / Landscape |
|
Camera |
Colour 3.2 Megapixels, auto-focus, LED Flash |
|
Audio |
Speaker/microphone (mono), 3.5mm headset connector (stereo) |
|
Battery |
Rechargeable battery: Lithium-Ion Polymer 3.7V 3060mAh |
|
Hot swappable (Backup Battery 18 mAh) |
|
|
Operating Temperature |
-10°C to 50°C |
|
Storage Temperature |
-30°C to 80°C |
|
Humidity |
up to 95% relative humidity, non-condensing |
|
Mechanical Shock |
Functional after 1.5 m (4’) drop onto concrete |
|
Sealing |
IP-65 rating |
|
H x W x D |
151 x 75 x 25 mm |
|
Weight |
340 g (including batteries) |
|
Regulatory & Safety |
Product compliance: CE, FCC, PTCRB, GCF, RoHS, CTIA/IEEE1725, IEC 60825-1 Class 2 |
