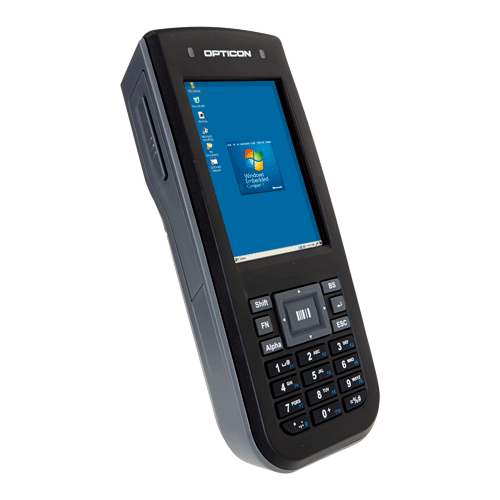

Opticon H32 Windows CE Portable Data Terminal
Main features :
-
Windows Embedded Compact 7 Portable Data Terminal
-
Barcode Laser Scanner
-
Can withstand multiple drops to concrete from 1.5 m
-
IP-54 Rating
-
2.8 inch QVGA Colour LCD with Touch screen
-
Windows Embedded Compact 7 OS
-
Wifi IEEE 802.11 a/b/g/n CCX
-
Bluetooth V2.1 + EDR
OPH32-1D
Opticon H-32 Portable Data Terminal with Laser Scanner, standard Battery, Handstrap & Stylus
Order Code
Description
Cradles
OPCRD32
Communication/Charging Cradle with integrated spare battery charging bay with power supply and USB Cable
OPCRD32E5
Multi Communication/Charging Cradle
Adaptor
AD-USB21A
2.1A USB Power supply
Holster
OPH32HOLSTER
Protective cover/Holster for H-32
Battery
OPH32STBATT
Standard Capacity Battery 3.7V 1800mAh
Processor
AM3354 ARM Cortex A8 800 MHz
Operating System
Windows Embedded Compact 7
Software
Wordpad, Internet Explorer, Active Sync, Messenger, Opticon scanner application, Accessories, Upgradeable via user accessible microSD
Flash Memory
256 MB flash ROM
RAM Memory
256 MB Mobile DDR2
Expansion
User accessible microSD + HC
Scan engine
Laser scanner
Light Source
650nM visible Laser Diode
Scan rate
100 scans/sec
Reading Pitch Angle
-35° to 0° to +35°
Reading Skew Angle
-50° to -8°, +8° to +50°
Reading Tilt Angle
-20° to 0° to +20°
Minimum PCS Value
0.45
Reading Distance
Depth of field: At PCS 0.9, Code 39
70 – 650 mm (1.00 mm / 39 mil),
50 – 420 mm (0.5 mm / 20 mil),
50 – 260 mm (0.25 mm / 10 mil),
50 – 150 mm (0.15 mm / 6 mil),
60 – 120 mm (0.127 mm / 5 mil)
Symbologies support
Barcode (1D): JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISMN-ISSN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey
Postal code: Chinese Post, Korean Postal Authoritycode
2D code: Composite Codes, MicroPDF417, PDF417
Keyboard
Entry options: 26 keys total, 12 keys (alpha)numeric keypad, 4-way navigation keys, function key, Backspace Key, power key, Enter Key, Alpha Key, Escape Key, Shift Key, 3 Scan Keys
Display
Type: Graphic Transflective TFT QVGA with touch panel, with white LED adjustable backlight
Size: 2.8″, 240 x 320 pixels
Mode: Portrait
Battery
Rechargeable battery: Lithium-Ion Polymer 3.7V 1800mAh
integrated rechargeable Back up battery
Charging through Micro USB Cable
Operating Temperature
-10 to 50°C
Humidity
5% to 85% relative humidity, non-condensing
Mechanical Shock
Functional after 1.5 m (5′) drop onto concrete
Sealing
IP-54 rating
H x W x D
143 x 64 x 28 mm
Weight
195 g (including batteries)
Regulatory & Safety
Product compliance: CE, FCC, RoHS, IEC 60825-1 Class 2, FDA CDRH Class II
