OPI1101B

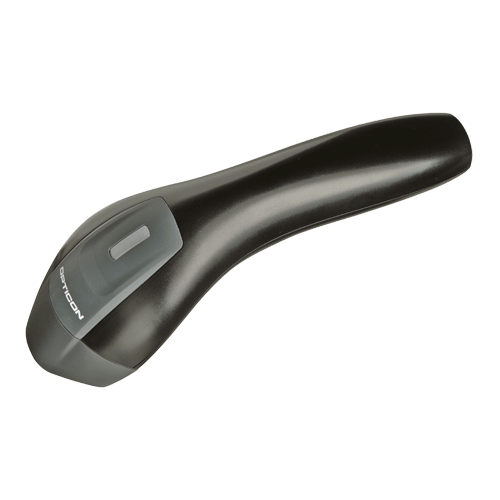

OPI-1101 Black Scanner, comes with USB Communication dongle & USb Charging Cable

Order Code

Description

Hands free Stand

OP11STAND

Hands free Stand

Light source

Green Aiming LED, Red Illumination LED’s

Scan Method

CMOS area Sensor, 752 x 480 Pixels, gray scale

Scan rate

Up to 60 fps (excl. focusing)

Trigger mode

Manual, Auto trigger. Auto Stand Detection

2D image format

Windows Bitmap, JPEG, TIFF

2D image output mode

4 resolutions (full, 1/2, 1/3, 1/4), 2 ranges (horizontal, vertical)

Min. resolution at PCS 0.9

0.127 mm / 5 mil for Code39 / QR code

0.169 mm / 7 mil for DataMatrix

Depth of field

for QR code

70 – 95 mm (res. 0.211 mm / 8.4 mil),

35 – 165 mm (res. 0.381 mm / 15 mil),

For Code39

65 – 105 mm (res. 0.127 mm / 5 mil)

45 – 185 mm (res. 0.254 mm / 10 mil)

50 – 250 mm (res. 0.508 mm / 20 mil)

Pitch Angle

-50 to 0°, 0 to +50°

Roll (Tilt) Angle

360°

Skew (Yaw) Angle

-50 to -0°, +0 to +50°

Field of view

Horizontal 40.6°, Vertical 26.4°

Reading Indicators

1 LED (red/green/orange), Buzzer

Communication

Zigbee 2.4 GHz range up to 10 m, 1 to 1 connection to USB Dongle (HID)

Symbologies supported

1D: JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSN-ISMN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey

Postal Code: Chinese Post, Intelligent Mail Barcode, Korean Postal Authority code & POSTNET

2D Code: Aztec Code, Aztec Runes, Chinese Sensible Code, Codablock F, Composite codes, Data Matrix (ECC200/EC0-140), Maxi Code (mode 2~5), MicroPDF417, Micro QR Code, PDF417, QR code

Battery

Rechargeable battery: Lithium-Ion 3.7V 1200mAh

Charging method

Through USB Cable, charging time approx. 4 Hours

Operating Temperature

0 to 40 °C

Storage Temperature

-20 to 60 °C

Operating Humidity

10 – 90 % (non-condensing)

Storage Humidity

10 – 90 % (non-condensing)

Ambient light immunity

Fluorescent 10,000 lx max, Direct sun 100,000 lx max, Incandescent 10,000 lx max

Drop Test

1.5 m / 5 ft drop onto concrete surface

Warranty

1 Year limited Factory Warranty (not on cable)

Dimensions (W x H x D)

Scanner 67 x 186 x 91 mm

Weight

Scanner 140 g (inc. Battery)

Product Compliance

CE, FCC, RoHS
