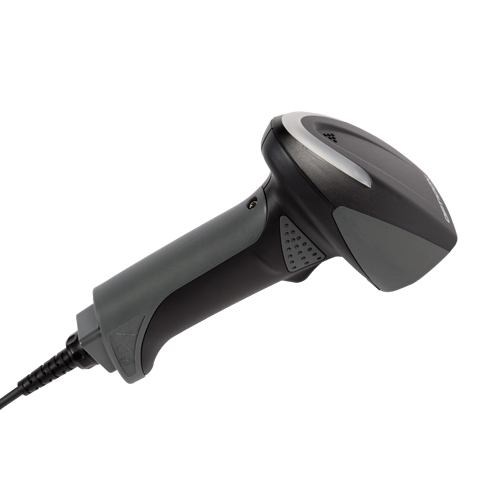

Handheld 2D Imager
-
Small form factor
-
Up to 30 frames/sec
-
The integrated auto trigger mode together with the dedicated stand enables hands-free operation
-
Ultra-lightweight, yet solid scanner withstands drops up to 1.5 meter onto concrete.
-
Available in USB, RS232 and Keyboard Wedge interface
?
|
Adaptor |
AD-OP6VR10P1.7 |
6V Regulated Power Supply |
|
Light source |
Aiming laser diode, illumination LEDs |
|
Scan Method |
CMOS area Sensor, SXGA (1.3 millions pixels), gray scale |
|
Scan rate |
Up to 30 fps, after auto-focus activation (100 ms after triggering) |
|
Trigger mode |
Manual, multiple read, auto trigger, stand detection |
|
2D image format |
Windows Bitmap, JPEG, TGIFF |
|
2D image output mode |
4 resolutions (full, 1/2, 1/3, 1/4), 2 ranges (horizontal, vertical) |
|
Min. resolution at PCS 0.9 |
0.127 mm / 5 mil for Code39 / QR code 0.169 mm / 7 mil for DataMatrix |
|
Depth of field |
for Code39 and QR code 15 – 40 mm (res. 0.127 mm / 5 mil) 15 – 280 mm (res. 0.139 mm / 13 mil), For Code39 15 – 100 mm (res. 0.1 mm / 4 mil) 15 – 155 mm (res. 0.127 mm / 5 mil) 15 – 365 mm (res. 0.254 mm / 10 mil) 90 – 1450 mm (res. 1.0 mm / 39 mil) |
|
Pitch Angle |
-45 to 0°, 0 to +45° |
|
Roll (Tilt) Angle |
360° |
|
Skew (Yaw) Angle |
-60 to -0°, +0 to +60° |
|
Field of view |
Horizontal 40°, Vertical 32° |
|
Reading Indicators |
Visual: 1 LED (red/green/orange) Non-visual: Buzzer |
|
Interface |
RS232 – DB9 PTF connector with external power supply Keyboard Wedge – MiniDIN6 F/M connector USB – Ver. 1.1, HID/VCP, USB-A connector |
|
Symbologies supported |
1D: JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSN-ISMN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey Postal Code: Chinese Post, Korean Postal Authority code 2D Code: Aztec Code, Aztec Runes, Composite codes, Data Matrix (ECC200/EC0-140), Maxi Code (mode 2~5), MicroPDF417, Micro QR Code, PDF417, QR code |
|
Input voltage |
5V ± 10% (USB), 6V ± 10% (RS232 and Keyboard Wedge) |
|
Input Current |
Max. 150 mA |
|
Operating Temperature |
-20 to 50 °C |
|
Storage Temperature |
-25 to 70 °C |
|
Operating Humidity |
5 – 90 % (non-condensing) |
|
Storage Humidity |
5 – 90 % (non-condensing) |
|
Ambient light immunity |
Fluorescent 10,000 lx max, Direct sun 100,000 lx max, Incandescent 10,000 lx max |
|
Drop Test |
1.5 m / 5 ft drop onto concrete surface |
|
Warranty |
2 Year limited Factory Warranty (not on cable) |
|
Dimensions (W x H x D) |
Scanner 72 x 175 x 95 mm |
|
Weight |
175 g |
|
Product Compliance |
CE, FCC, VCCI, RoHS |
