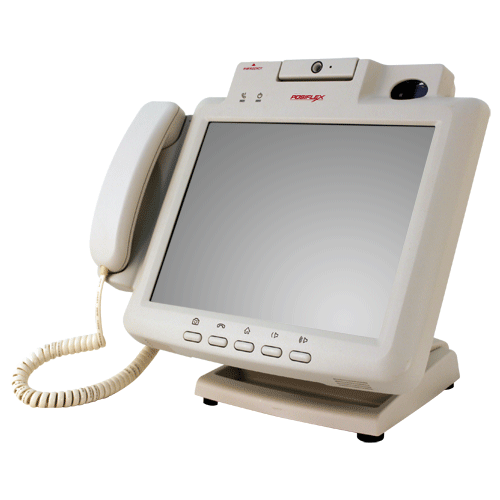

Touch System designed for aged Care
-
Handset for VOIP Communications
-
Web Camera to keep in touch with loved ones
-
Easy access function keys
-
Emergency Key
-
Fan-free design boasting quiet and anti-dust features
-
Patented aluminium die-cast housing design for efficient cooling
-
10″ LCD Display with 5-wire Resistive Touch Screen
-
Equipped with Intel Pine View Dual Core D525 1.8 GHz CPU and DDR3 memory
-
32 GB or higher SSD
-
1Gb RAM expandable to 4Gb
-
Powered Serial ports
-
Optional CF Slot
|
Bracket |
PFWB6812 |
Wall mount Bracket |
|
CPU |
Intel Pine View Dual Core D525 1.8 GHz / 1M Cache CPU |
|
Memory |
DDR3 800 MHz, SO-DIMM socket x 1, max 4 GB, default 1GB |
|
Storage |
We stock Standard 32G SSD Also available with higher spec SSD or 3.5 inch 250GB Hard Disk Drive CF Card Slot Type 1 Memory card |
|
LCD |
10″ Active Matrix LCD Display |
|
Brightness |
250 nits |
|
Resolution |
1024 x 768 |
|
Touch Panel |
5-wire Resistive, USB Interface |
|
Connectivity |
3 RS-232 Ports (2 x DB9, 1 x RJ45) |
|
4 USB Ports |
|
|
VGA Port for 2nd Display optional |
|
|
1 Cash Drawer Port (Controls 2 drawers with optional Y-cable) |
|
|
10/100/1000Mb Ethernet Port |
|
|
Line out Audio Port |
|
|
Power on wake up |
Through Alarm, LAN or Modem |
|
Sound |
2W Speaker x 2 in the main unit, MIC in / Line out |
|
Size (W x D x H) |
310mm x 206mm x 269mm |
|
Weight |
3.12 Kg |
