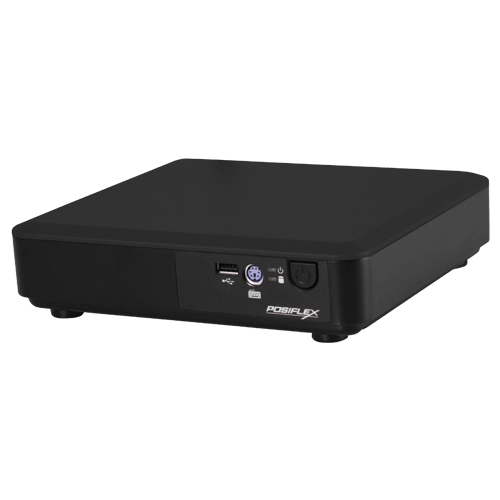

Fanless PC POS System
-
CedarView Dual core D2550 1.86 Ghz CPU
-
Fanfree POS Box
-
32 GB SSD or larger (optional HDD)
-
2 GB DDR3 RAM expandable to 4GB
-
Aluminium die-cast housing for efficient cooling
-
Powered Serial ports
-
Dual VGA and HDMI Port
-
Mini PCIe Slot
-
HDD or Larger SSD drives available
-
Optional Touch monitors, Pole displays available
?
|
Pole Display |
PFPD300B-U |
2 Line 20 Character LCD Display pole display with USB Interface |
|
PFPD2600B-U |
2 Line 20 Character VFD Pole Display with USB Interface |
|
|
LCD Display |
PFTM8115B-U |
15″ inch LCD Display with Resistive Touch Panel (USB Controller) |
|
PFLM8115B |
15″ inch LCD Display |
|
|
Converter Cable |
CAB-PFRJ45DB9M |
RJ45 to DB9 converter cable? |
|
CPU |
Intel CedarView Dual Core D2550 1.86GHz CPU |
|
Memory |
2 GB DDR3 1066 MHz RAM SO-DIMM (1 Slot) expandable to 4 GB |
|
Storage |
Standard with 32 GB SSD Can be supplied with 3.5 inch 320 GB Hard Disk Drive or Larger SSD Drives |
|
Connectivity |
2 x DB9 RS-232 Ports 2 x RJ45 RS-232 Port with 5V/12V support on COM1/COM2/COM3/COM4 (RJ45 to DB9) cable optional |
|
10/100/1000Mb Ethernet Port |
|
|
6 x USB 2.0 Ports |
|
|
2 x VGA Port with 12V support for Posiflex LCD Monitor |
|
|
1 x HDMI Port |
|
|
1 x Mini-PCIe slot |
|
|
1 x Cash Drawer Port (Controls 2 drawers with optional Y-cable) |
|
|
Power on wake up |
Through Alarm, LAN or Modem |
|
Size (W x D x H) |
220mm x 202mm x 56mm |
|
Weight |
1.29 Kg |
|
Operating Temperature |
0 ~ 50°C with SSD 0 ~ 40°C with HDD |
|
Storage Temperature |
-20 ~ 70°C |
|
Relative Humidity |
10% ~ 90% non condensing |
|
Power Supply |
80W-12V External Power supply |
