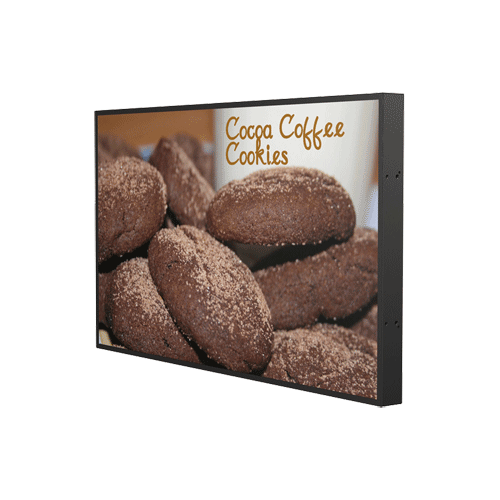

42″ Wide LED LCD Monitor
-
Metal Cabinet
-
Extra Wide Viewing angle
-
Narrow Bezel
-
Fanless
-
Thermal Alarm & Protection
-
RS232 remote control API utility support
-
High Brightness
-
Industrial grade
-
HDMI & VGA input
-
Optional IR Touch
|
Viewing Area |
42″ Active Matrix TFT LCD |
|
Resolution |
1920 x 1080 Pixel pitch 0.4845 x 0.4845 |
|
Contrast Ratio |
4000:1 |
|
Brightness |
HE & IR 500 cd/m² SH 700 cd/m² |
|
Display Colours |
Colour/grey scale: 1073M/10bits |
|
Response Time |
8 ms |
|
View Angle L/R |
178º / 178º |
|
View Angle U/D |
178º / 178º |
|
Signal Connector |
2 x HDMI 2 x VGA RS232: in x1/out x 1 |
|
Audio |
Speaker 5W |
|
Audio Connector |
Input: x 2 Output: x 1 |
|
Touch Panel (option) |
Infra Red Touch Screen |
|
Touch Interface |
RS232 |
|
Power Supply |
AC 100~240V, 50/60Hz |
|
Consumption (Max) |
110 W (Max.) at stand-by Max. 1.5 w |
|
Operating Temperature |
0 ~ 40 ºC |
|
Operating Humidity |
10 ~ 80% |
|
External Dimensions (W x D x H) |
962 x 52 x 555 mm (without Wall Bracket) bezel width: 11.8 mm |
|
Weight |
16.7 Kg |
|
EMC/Safety Standards |
CE (EMC/LVD), FCC, UL, CUL, CB, CCC, C-Tick |
