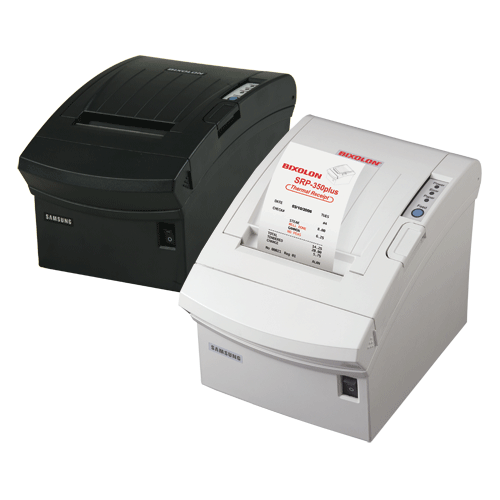

Bixolon SRP-350 Plus III Thermal POS Printer – Industry Leading 300mm/second

The Bixolon SRP-350 Plus III is a thermal receipt printer commonly used in point-of-sale (POS) systems across various industries. Here are its key features and specifications:

Customised Solution, Support and Installation

The Bixolon SRP-350 Plus III is a thermal receipt printer commonly used in point-of-sale (POS) systems across various industries.

Here are its key features and specifications of Bixolon SRP-350 Plus III

1. **Printing Technology**: The Bixolon SRP-350 Plus III utilizes direct thermal printing technology, which means it prints on heat-sensitive paper without the need for ink ribbons or cartridges.

2. **Printing Speed**: It offers a high-speed printing capability of up to 300 millimeters per second (mm/s), enabling fast and efficient printing of receipts and other documents.

3. **Print Resolution**: The printer typically provides a print resolution of 180 dots per inch (dpi), ensuring clear and sharp text, logos, and graphics on receipts.

4. **Print Width**: The Bixolon SRP-350 Plus III supports printing on paper widths of 80mm (3.15 inches), which is the standard size for most receipt rolls used in POS systems.

5. **Connectivity Options**: It comes with various connectivity options including USB, Serial, Ethernet, and Bluetooth interfaces, providing versatility for integration with different POS systems and environments.

6. **Compatibility**: The Bixolon SRP-350 Plus III is compatible with various operating systems including Windows, Linux, and OPOS (OLE for Retail POS) systems, making it suitable for a wide range of POS software applications.

7. **Reliability**: Known for its reliability, the SRP-350 Plus III is designed to withstand heavy-duty usage in demanding retail and hospitality environments.

8. **Paper Handling**: It supports standard thermal paper rolls with a diameter of up to 83mm (3.27 inches), allowing for longer printing times before needing to replace paper rolls.

9. **Ease of Use**: The printer features easy paper loading and a built-in auto-cutter for efficient receipt cutting, enhancing user convenience and productivity.

10. **Compact Design**: With its compact and ergonomic design, the SRP-350 Plus III is suitable for environments where space is limited such as retail checkout counters and restaurant POS stations.

Overall, the Bixolon SRP-350 Plus III thermal receipt printer offers fast, reliable, and high-quality printing capabilities, making it a popular choice for businesses seeking efficient POS printing solutions.





  • Fast printing speed of up to 300mm per second

  • High speed USB 2.0 & Ethernet Interface standard onboard

  • Optional RS232, Parallel, Wifi and Bluetooth interfaces available

  • Compatible with smart devices including iOS (MFi optional), Android & Windows RT 8.1

  • Long lasting Auto-cutter up to 1.8 million cuts with easy paper-jam removal

  • Two colour printing (on special Paper)

  • Cost saving Paper reduction function (also for Barcode)

  • Customer oriented software tools provided

  • 2D barcode printing support (PDF417, Datamatrix & QR code)

  • Available in Dark Grey & White (special Order)

  • Only Auto cutter version available in Australia

Check out  Bixolon SRP-350 Plus III printer installation and configuration services here

Paper

T8080

Thermal 80x80x11.5 Paper Rolls

Interface Cards

RIF350IIIR

RS-232 Interface

RIF350IIIP

Parallel Interface

RIF350IIIW

Wifi Interface

RIF350BTi

Bluetooth Interface

Wall Mounting Bracket

RWM350

Splash Cover

RSC350II

Printing Method

Thermal Line Dot method

Print Speed

Max. 300 mm/sec

Resolution

180 Dpi (203Dpi available, special order only MOQ)

Paper Size

width 80 mm, Ø up to 83 mm

Column Capacity

Font A: 42 Columns

Font B: 56 Columns

Character Set

Alpha Numeric Character: 95

Extended Graphics: 128 X 37 pages

International Characters: 32

Character Size

Font A:

1.25 x 3 mm (12 x 24 dots)

Font B:

0.88 x 3 mm (9 X 24 dots)

Emulation

ESC/POS

Bar-code type

1D: UPC-A/E, EAN-13/8, ITF, Code 39, Code 128, CODABAR,

Code 93

2D: PDF417, QR-Code, DataMatrix

Data input Buffer

4 Kb

Memory

64Mbit SDRAM, 32 Mbit FlashROM

NV Memory

768 Kbytes

Data input Buffer

4 Kb

Interface

USB

USB 2.0 (fitted as standard)

Ethernet

10/100 (Fitted as Standard)

Serial

RS-232C

Unidirectional Parallel

IEEE 1284

Wifi

802.11b/g/n

Bluetooth

Class 1 100m MFi Certified

Drawer Kick-out

2 drawers through 1 RJ12 Connector

Power

24 DCV +/- 7%, External power supply

External Dimensions

(WxDxH)

144 x 204 x 148 mm

Weight

1.56Kg

Reliability

Print Head

150 Km

Mechanism

70,000,000 Lines

Auto Cutter

1.8 million cuts

Safety Standards

UL, C-UL, FCC Class A, TUV-GS, CE Marking, C-tick

Operating Environment

0~45 °C 10~80% RH

Storage Environment

-20~60 °C 10~90% RH

Software

iOS SDK, Android SDK, Windows SDK, Utility Program

Warranty

Limited 2 Year Back to base warranty
