Replacement for this printer now is SRP-350 Plus III
-

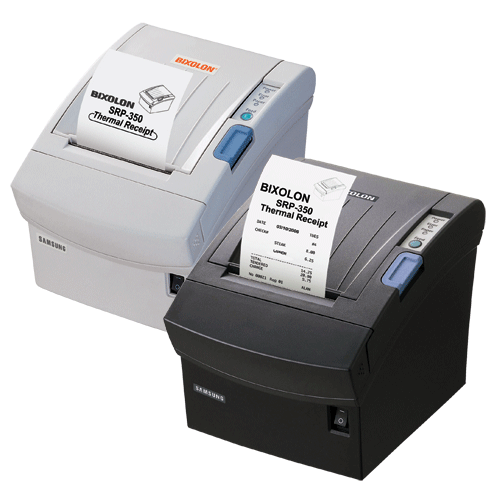

Compact Thermal Receipt Printer
-
150 mm/Sec High Speed Printing
-
Now standard without interface!
-
Various interface cards available:
RS-232C, IEEE Parallel, RS-485, USB or 10/100 Ethernet.
-
ESC/POS compatible
-
Page mode printing
-
Easy to use:
– Drop in Paper loading
– Eliminates Paper Jams
-
NV Memory for Bit map Data storage
-
Full or Partial Cut
-
Barcode Printing
-
Easy customization by software program
-
Available in Dark Grey & White
?
|
Paper |
T8080 |
Thermal 80x80x11.5 Paper Rolls |
|
Interface Cards |
RIF350R |
RS-232 Interface |
|
RIF350S |
RS-485 Interface |
|
|
RIF350P |
Parallel Interface |
|
|
RIF350U |
USB Interface |
|
|
RIF350UR |
USB & RS232 Interface |
|
|
RIF350PU |
Powered USB Interface |
|
|
RIF350E |
Ethernet Interface |
|
|
Wall Mounting Bracket |
RWM350 |
|
|
Splash Cover |
RSC350 |
|
Printing Method |
Thermal Line Dot method |
|
|
Print Speed |
Max. 150 mm/sec (47.2 Lines/sec) |
|
|
Column Capacity |
Font A: 42 Columns |
|
|
Font B: 56 Columns |
||
|
Character Set |
Alpha Numeric Character: 95 |
|
|
Extended Graphics: 128 X 7 (1 Space Page) |
||
|
International Characters: 32 |
||
|
Character Size |
Font A: |
1.25 x 3 mm (12 x 24 dots) |
|
Font B: |
0.88 x 3 mm (9 X 24 dots) |
|
|
Emulation |
ESC/POS |
|
|
Bar-code type |
UPC-A/E, JAN-13/8, ITF, Code 39, Code 128, CODABAR, Code 93 |
|
|
Data Buffer |
4 Kb |
|
|
NV Bitmap Memory |
256 Kb |
|
|
Interface |
Serial |
RS-232C |
|
RS-485 |
||
|
Unidirectional Parallel |
IEEE 1284 |
|
|
USB |
||
|
Ethernet |
||
|
Drawer Kick-out |
2 drawers through 1 RJ12 Connector |
|
|
Power |
24 DCV +/- 7%, 1.9A, External power supply |
|
|
External Dimensions (WxDxH) |
145 x 195 x 146 mm |
|
|
Reliability |
Head |
100,000,000 Pulses (100Km) |
|
Mechanism |
37,000,000 Lines |
|
|
Safety Standards |
UL, C-UL, FCC Class A, TUV-GS, CE Marking |
|
