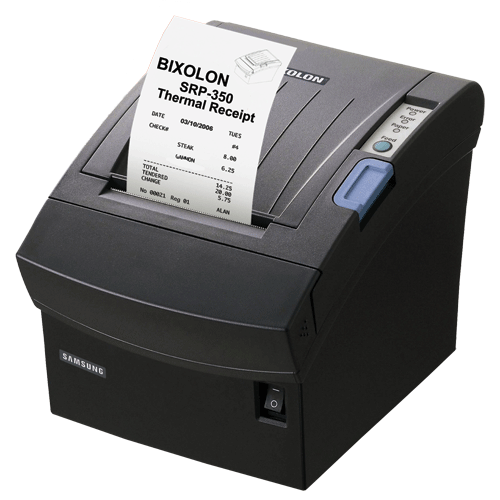

Bixolon SRP-350II Thermal POS Printer – Efficient

The Bixolon SRP-350II is a thermal POS (Point of Sale) printer designed for various retail, hospitality, and other business applications. Here are some key features and specifications of the Bixolon SRP-350II:

Customised Solution, Support and Installation

The Bixolon SRP-350II is a thermal POS (Point of Sale) printer designed for various retail, hospitality, and other business applications. Here are some key features and specifications of the Bixolon SRP-350II:

1. **Printing Technology**: The Bixolon SRP-350II utilizes direct thermal printing technology. Direct thermal printers use heat to produce images on specially coated thermal paper without the need for ink ribbons or toner cartridges.

2. **Printing Speed**: It offers a printing speed of up to 250 millimeters per second (mm/s), providing fast and efficient printing for POS transactions and other documents.

3. **Print Resolution**: The print resolution of the Bixolon SRP-350II is typically 180 dots per inch (dpi), resulting in clear and legible text and graphics on receipts and other documents.

4. **Print Width**: It supports printing on paper widths up to 80mm (3.15 inches), which is the standard size for most receipt rolls used in POS applications.

5. **Connectivity Options**: The SRP-350II typically offers multiple connectivity options, including USB, Serial, Parallel, Ethernet, and Bluetooth interfaces, allowing it to be easily integrated into different POS systems and environments.

6. **Compatibility**: The Bixolon SRP-350II is compatible with various operating systems and POS software, providing flexibility in deployment and integration with existing systems.

7. **Reliability**: Thermal printers like the SRP-350II are known for their reliability and low maintenance requirements, making them ideal for high-volume printing environments.

8. **Paper Handling**: It typically supports standard thermal paper rolls with a diameter of up to 83mm (3.27 inches), offering flexibility in printing different types of receipts and documents.

9. **Ease of Use**: The printer is designed for easy operation and maintenance, with features such as simple paper loading and an auto-cutter for efficient document separation.

10. **Compact Design**: The SRP-350II is often designed with a compact footprint, making it suitable for environments where space is limited, such as retail checkout counters and hospitality venues.

Overall, the Bixolon SRP-350II thermal POS printer offers fast, reliable, and efficient printing capabilities, making it a popular choice for businesses looking for high-quality receipt printing solutions for their POS systems.

  • Compact Thermal Receipt Printer

  • 200 mm/Sec High Speed Printing

  • Standard without interface!

  • Various interface cards available:

    RS-232C, IEEE Parallel, USB or 10/100 Ethernet

  • ESC/POS compatible

  • Page mode printing

  • Easy to use:

    – Drop in Paper loading

    – Eliminates Paper Jams

  • 2D Barcode Printing:

    – PDF417

    – QR Code

  • SRP-350II PSP (POS Software Package) Launcher Available
    – Intelligent Interface Auto-installer
    – Reverse Printing (Rotation)
    – Margin Crop
    – Text & Image Macro

  • NV Memory for Bit map Data storage

  • Full or Partial Cut

  • Drivers available for Windows, OPOS, JPOS, Mac & Linux

  • Available in Dark Grey & White (Special Order)



Check out our installation services here

?

Paper

T8080

Thermal 80x80x11.5 Paper Rolls

Interface Cards

RIF350R

RS-232 Interface

RIF350PlusP

Parallel Interface

RIF350UII

USB Interface

RIF350E

Ethernet Interface

Wall Mounting Bracket

RWM350

Splash Cover

RSC350II

Printing Method

Thermal Line Dot method

Print Speed

Max. 200 mm/sec

Print Resolution

180 dpi (7 dot/mm)

Paper Size

80mm width, Ø 83mm

Column Capacity

Font A: 42 Columns

Font B: 56 Columns

Character Size

Font A:

1.25 x 3 mm (12 x 24 dots)

Font B:

0.88 x 3 mm (9 X 24 dots)

Character Set

Alpha Numeric Character: 95

Extended Character 128 x 37 pages

International Characters: 32

Emulation

ESC/POS TM

Drivers

Windows, OPOS, JPOS, Linux CUPS (Linux Kernel 2.4.18 and later), Mac Driver

Bar-code type

1D: UPC-A/E, JAN-13/8, ITF, Code 39, Code 128, CODABAR,

Code 93

2D: PDF417, QR Code

Data Buffer

4 Kb

NV Bitmap Memory

256 Kb

Interface

Serial

RS-232C

Unidirectional Parallel

IEEE 1284

USB

2.0

Ethernet

10/100

Drawer Kick-out

2 drawers through 1 RJ12 Connector

Operating Temperature

0 ~ 45 °C

Power

24 DCV +/- 7%, 2.5A,  External power supply

External Dimensions

(WxDxH)

145 x 203 x 146 mm

Reliability

Head

150Km

Mechanism

70,000,000 Lines

Auto Cutter

1.8 Million Cuts

Safety Standards

UL, C-UL, FCC Class A, TUV-GS, CE Marking
