Bixolon SRP-F310 is a thermal POS (Point of Sale) printer designed for various retail, hospitality, and other business applications.
Here are some key features and specifications of the Bixolon SRP-F310:
1. **Printing Technology**: The SRP-F310 utilizes direct thermal printing technology, which means it prints on heat-sensitive paper without the need for ink ribbons or cartridges.
2. **Printing Speed**: It offers a printing speed of up to 350 millimeters per second (mm/s), providing fast and efficient printing for POS transactions and other documents.
3. **Print Resolution**: The print resolution of the Bixolon SRP-F310 is typically 180 dots per inch (dpi), ensuring clear and legible text and graphics on receipts and other documents.
4. **Print Width**: It supports printing on paper widths up to 80mm (3.15 inches), which is the standard size for most receipt rolls used in POS applications.
5. **Connectivity Options**: The SRP-F310 typically offers multiple connectivity options, including USB, Serial, Ethernet, and Bluetooth interfaces, allowing it to be easily integrated into different POS systems and environments.
6. **Compatibility**: The Bixolon SRP-F310 is compatible with various operating systems and POS software, providing flexibility in deployment and integration with existing systems.
7. **Reliability**: Thermal printers like the Bixolon SRP-F310 are known for their reliability and low maintenance requirements, making them ideal for high-volume printing environments.
8. **Paper Handling**: It supports standard thermal paper rolls with a diameter of up to 83mm (3.27 inches), offering flexibility in printing different types of receipts and documents.
9. **Ease of Use**: The printer is designed for easy operation and maintenance, with features such as simple paper loading and an auto-cutter for efficient document separation.
10. **Compact Design**: The Bixolon SRP-F310 is often designed with a compact footprint, making it suitable for environments where space is limited, such as retail checkout counters and hospitality venues.
Overall, the Bixolon SRP-F310 thermal POS printer offers fast, reliable, and efficient printing capabilities, making it a popular choice for businesses looking for high-quality receipt printing solutions for their POS systems.
-

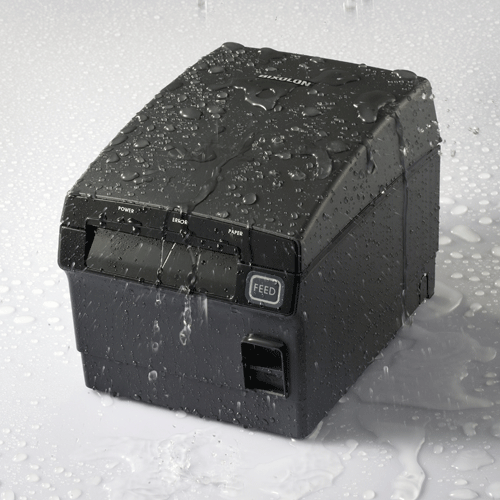

Liquid-Barrier™ front exit printer(IPX2 Class Certified)
-
All in one plus™ Interfaces (Ethernet USB dongle(WLAN)USB 2.0 On Board/Serial or Parallel)
-
Ethernet ,USB 2.0, USB host port for WLAN dongle on board
-
Fastest BIXOLON receipt printer -270mm/sec
-
Larger paper roll diameter up to 105mm
-
BIXOLON Interactive Linker(Option)
->Programmable choice using 4 buttons.
(Receipt on demand printing/Cash drawer open/
Printing stop/Signal back to host POS) -
Built-in Power Supply
-
User-convenience Design/Ergonomic design front control panel
-
Full featured BIXOLON POS Software Package (PSP)
-
Available in Dark Grey & White
-
Only Auto cutter version available in Australia
Check out Bixolon SRP-F310 printer installation and configuration services here
|
Paper |
T8080 |
Thermal 80x80x11.5 Paper Rolls |
|
T80100 |
Thermal 80x100x11.5 Paper Rolls |
|
|
Interactive Keyboard |
BIL100G |
4 Button Interactive Keyboard, advanced printer option that allows users to add commands to four customizable buttons. (Receipt on demand, Cash drawer open, Printing stop, Signal back to the host POS) |
|
Wifi |
RWD100 |
Wifi Dongle |
|
Printing Method |
Thermal Line Dot method |
|
|
Print Speed |
Max. 270 mm/sec |
|
|
Resolution |
180 Dpi (7 dot/mm) (203Dpi available, special order only) |
|
|
Column Capacity |
Font A: 42 Columns |
|
|
Font B: 56 Columns |
||
|
Font C: 56 Columns |
||
|
Character Set |
Alpha Numeric Character: 95 |
|
|
Extended Graphics: 128 X 33 (1 Space Page) |
||
|
International Characters: 32 |
||
|
Character Size |
Font A: |
12 x 24 dots |
|
Font B: |
9 X 17 dots |
|
|
Font C: |
9 X 24 dots |
|
|
Emulation |
ESC/POS™ |
|
|
Drivers |
Windows™ Driver, OPOS Driver, JPOS Driver, Linux CUPS Driver, MAC Driver |
|
|
Bar-code type |
1D: UPC-A/E, EAN-13/8, ITF, Code 39, Code 128, CODABAR, Code 93 2D: PDF417, QR-Code |
|
|
Input Buffer |
4 Kb |
|
|
NV Bitmap Memory |
256 Kb |
|
|
Sensors |
Paper near end, Paper end, Cover open |
|
|
Interface |
Serial |
RS-232C |
|
USB |
USB 2.0 on board |
|
|
Ethernet |
on Board |
|
|
WLAN |
using RWD100 Dongle in USB Host Port |
|
|
Paper Width |
80/83 mm |
|
|
Paper Roll max. Ø |
105 mm |
|
|
Drawer Kick-out |
2 drawers through 1 RJ12 Connector |
|
|
Power |
AC 100~240V / 24 DCV +/- 7%, 2.5A, Internal power Supply |
|
|
Operating Temperature |
0 ~ 45 ºC |
|
|
External Dimensions (WxDxH) |
154 x 203 x 148 mm |
|
|
Reliability |
Head |
150Km |
|
Mechanism |
70,000,000 Lines |
|
|
Auto Cutter |
1,800,000 millions cuts |
|
|
Safety Standards |
UL, C-UL, FCC Class A, TUV-GS, CE Marking |
|
