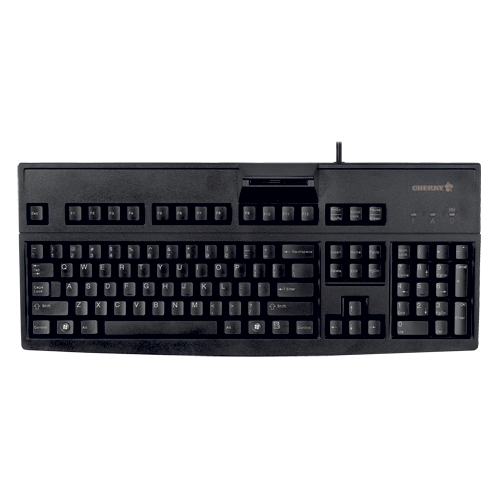

Membrane Technology Keyboard
-
Common Criteria EAL 3+ certified for electronic signatures
-
Secure PIN entry
-
PC/SC Smart card reader
-
CT-Api and OCF support
-
Protocols: T=0, T=1, S=8, S=9, S=10
-
EMV 2000 Level 1 approved
-
CCID compatible
-
Reading/writing ISO 781-compliant chipcards
|
Keyboard |
Key technology: NTK Membrane Inscription technology: Laser Service life, standard key: > 20 million key operations Number of Keys: 104 |
|
Smart-Card Reader |
Hardware interface: USB Agency Approvals: Product dependant, see table “Models” Chip-card protocols: T=0, T=1, S=8, S=9, S=10 Contact: mechanical swipe reader Software interface: CT-Api, PC/SC, CCID Mating cycles: approx. 100,000 operations Compatible chip card types: Reads and writes on all ISO7816 cards Transmission speed reader <==> card: 412,903 Bit/s Transmission speed reader <==> system: max. 12 MBit/s Chip card pulse frequency: 4.8 MHz |
|
Interface |
USB |
|
Cable Length |
approx. 1.75 m |
|
Current Consumption |
Max. 100 mA |
|
Operating Temperature |
0°C to 50°C |
|
Storage Temperature |
-20°C to 60°C |
|
Dimensions |
approx. 458 x 170 x 52 mm |
|
Weight |
1.25 Kg |
|
Product compliance |
C-tick, UL, VDE GS, VCCI, CE, FCC, BG-GS, FIPPS 201 |
|
Warranty |
2 Year limited factory warranty |
