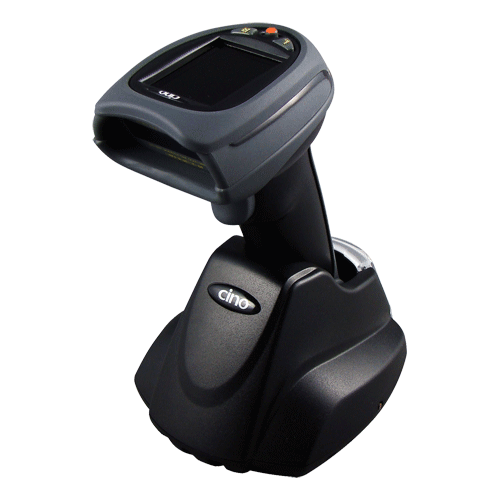

Solid State Linear Imager Technology, No moving parts!
-
Enterprise-class 802.11b/g wireless Connectivity
-
Supports latest wireless LAN security: WEP, WPA and WPA2
-
Built-in 2” crystal clear colour display
-
two function keys and a navigation key
-
Smartphone-like virtual keyboard is available to fulfil comprehensive alphanumeric data entry
-
Blue link and 2-colour status indicators for clear operator feedback
-
Built-in vibrator is ideal for noisy and quiet environments
-
Host acknowledgement function guarantees the data integrity for online real-time transmission
-
Optional input fields and transmission sequence are available for batch operation
-
Long range model and high performance with laser aimer model are available
-
Ultimate WaveCentre software for robust application development
|
Hands-free Stand |
FB760STAND |
Hands-free SmartStand for FBC760/780 scanner. Automatically switched between Hand held scanning and Presentation scanning when scanner put into the stand |
|
Deskholder |
FBCUNIHOLDER |
Universal Desk Holder |
|
Power Supply |
AD5VR10P1.7 |
Optional Power Supply |
|
Scan Engine |
High Performance Linear Imaging Engine |
|
|
Light Source |
630 nm visible red LED |
|
|
Scan Rate |
Dynamic scanning rate up to 500 scans/sec |
|
|
Working Distance |
More then 60cm on 100% UPC/EAN symbols More then 80cm on general Bar codes |
|
|
Minimum resolution |
Typical 3 mil (Code 39, PCS 0.9) |
|
|
Print contrast |
20% minimum reflective difference |
|
|
Pitch Angle |
+/- 65deg. |
|
|
Skew Angle |
+/- 65 deg |
|
|
Tilt Angle |
+/- 55 deg |
|
|
User Interfaces |
2″ QVGA Backlit Colour Display 2 function Keys & 1 5-way navigation key Blue Link indicator and 2-colour status indicators Programmable Beeper Vibrator |
|
|
Communication Characteristics |
RF Standard |
IEEE 802.11b/g |
|
RF Frequency |
Country dependant Typical 2.4 to 2.5 GHz |
|
|
Operating modes |
Infrastructure mode Ad-hoc mode |
|
|
Range |
more then 150m in open space |
|
|
Security |
WEP WPA WPA2 |
|
|
Electrical Characteristics |
Battery |
3.7V, 2200 mAh LI-ion reachargeable battery |
|
Charging Time |
Approx. 4-5 Hours per full charge |
|
|
Interfaces |
PS2 Keyboard Wedge or Keyboard direct link |
|
|
RS-232 (May require external power supply) |
||
|
USB (KBW or COM port emulation) |
||
|
Laser and Wand emulation |
||
|
Symbologies support |
Code 39, Code 39 Full ASCII, Code 32, Code 39 Trioptic, Code 128, UCC/EAN-128, Codabar, Code 11, Code 93, Standard & Industrial 2 of 5, Interleaved & Matrix 2 of 5, German Postal Code, China Postal Code, IATA, UPC/EAN/JAN, UPC/EAN/JAN with Addendum, Telepen, MSI/Plessey & UK/Plessey, GS1 DataBar (formly RSS) Linear, Linear-stacked. |
|
|
Ambient Light Immunity |
0~100000 Lux |
|
|
Drop Specification |
Withstands multiple 1.8m drops to concrete |
|
|
Environmental Sealing |
IP41 |
|
|
Operating Temperature |
-10°C to 50°C |
|
|
Storage Temperature |
-40°C to 70°C |
|
|
Relative Humidity |
5~95% non condensing |
|
|
Input Voltage |
5VDC ±10% |
|
|
Weight |
211g (including the battery) |
|
|
Dimension (LxWxD) |
95 x 70.5 x 160.5 mm |
|
|
Warranty |
1 Year Factory Warranty (not on cable, conditions apply) |
|
|
Safety & Regulatory |
EMI/RFI: FCC part 15 Class B, Taiwan EMC (BSMI), CE, Korean EMC (KC) Radio: FCC Part 15 Subpart C, Japan MIC T401, CE, Taiwan NCC, KC Safety: LED Eye safety IEC62471-1, Exempt group (Do not stare into LED) Environmental: RoHS |
|
