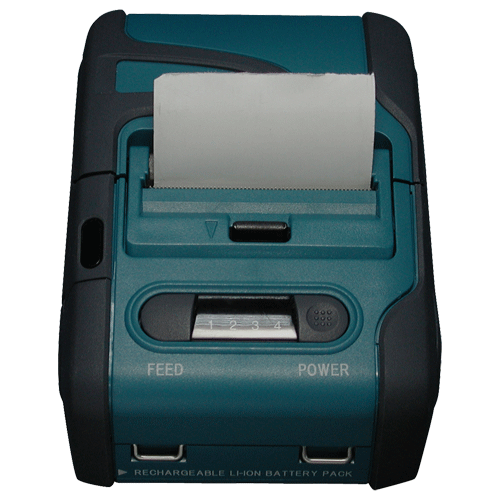

Mobile Thermal Printer
-
Palm Size
-
Paper Drop in Style
-
Variable paper width from 34 to 58mm
-
Can be used for Label Printing
-
Bluetooth, IRDA & RS232 interface
-
Large 2200mAh Li-ion rechargeable Battery
-
Low battery monitoring
-
Belt Clip
-
Epson TM88 ( ESC/POS ) command set emulation
-
Rubberized over-moulding design for 1.2m drop resistance
-
2 Colour Printing with special paper
-
Auto power off function
?
|
Paper |
T5750 |
Thermal 57 x 50 Paper rolls |
|
Power Supply (option) |
AD9VR27MP |
9 Volt regulated power supply for MP3200 |
|
RS-232 Cable |
CAB-MP232 |
RS-232 Cable for the MP3200 |
|
Printing Method |
Line Thermal Dot Printing |
|
Printing Width |
48mm |
|
Dot pitch |
203 dpi |
|
Printing speed |
Max. 70 mm/sec |
|
Bar-code Type |
JAN13/8, Code39/128, ITF, NW-7, QR & PDF417 |
|
Paper |
Max. Width 58mm, Thickness 60-65 µm, Max. Diameter 50 mm |
|
Interface |
IrDA Version 1.2 (Up to 38.4 Kbps) |
|
RS-232C with optional special cable (up to 38.4 Kbps) |
|
|
Bluetooth wireless interface |
|
|
Sensor & Error monitoring |
Paper end, Cover-open, Low battery, Head overheat |
|
Optional Mag stripe reader |
Track 1, 2 & 3 |
|
Power Supply |
Li-ion battery 2200mAh |
|
AC adaptor for charging (output DC 9V, 2.7A) Optional extra |
|
|
Battery |
40,000 print lines per charge (Characters) |
|
Maximum recharge time: 3 hours |
|
|
Auto power off |
1-60 minutes (default 10 min.) Software selectable. |
|
Weight |
Approx. 520g (with battery & belt clip, w/o paper roll) |
|
Dimensions (W x D x H) |
99 x 139 x 72 mm |
|
Operating environment |
5 ~ 40 ºC |
