Replacement: CLS-521 for CLP521
CLS-621 for CLP621
-

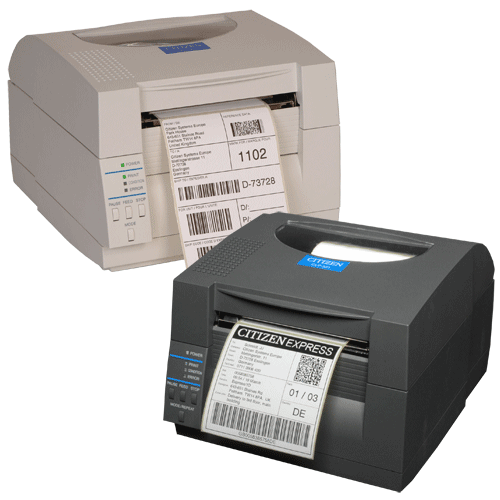

Durable Direct Thermal Desktop Label Printer
-
Metal print mechanism
-
Citizen’s unique high-opening print mechanism
-
An adjustable media sensor efficiently handles unique label configurations
-
Standard DPL™ emulation, also available with ZPL™ emulation
-
8 MB of DRAM and 2 MB of flash memory
-
32-bit RISC processor
-
Complete connectivity with parallel, serial and USB is standard.
-
Optional internal Ethernet or WiFi are also available.
-
Internal power supply
-
Optional peeler and cutter modules
|
Labels |
LAB100100TWS40 |
Thermal Labels 100 x 100 White, Permanent adhesive, 40mm Core |
|
LAB10050TWS40 |
Thermal Labels 100 x 50 White, Permanent adhesive, 40mm Core |
|
|
LAB10248TWS38P |
Thermal Labels 102 x 48 White, Permanent adhesive, 38mm Core, Perforated between labels. |
|
|
Many other sizes available |
Please Call our Sydney Office on: 02-8875 4544 |
|
Printing Method |
Direct Thermal printing |
|
|
Printing Speed (Max.) |
up to 4 inches/sec |
|
|
Print Density |
Adjustable with software |
|
|
Fonts |
1 Scalable, 8 Bitmap, OCR-A & B |
|
|
True type Download |
Supported Standard |
|
|
Control Language |
Conforms to Datamax® programming language |
|
|
Media Type |
Roll or Fanfold; Continues or Perforated; die cut labels; Tags & Tickets |
|
|
Media Sensing |
Label Gap, notch or reflective |
|
|
Resolution/Dot pitch |
203 dpi, 8 dots/mm |
|
|
Media width (Min-Max) |
19 – 118 mm |
0.75 – 4.65 inches |
|
Media Roll Size (Max) |
125 mm, 5 inches (Internal); External media supply path available |
|
|
Media Thickness (Min-Max) |
0.0635 – 0.254 mm |
0.0025 – 0.01 inches |
|
Printing width (Max) |
104 mm |
4.1 inches |
|
Printing lenght (Max) |
812 mm |
32 inches |
|
Label length (Min) |
2.54 mm |
0.1 inches |
|
Bar-code Symbologies |
Code39, Code93, ITF, Codabar, UPC-A/E, EAN-8/13, UPC and EAN 2 and 5-digit extensions, Plessey, Postnet, Interleaved 2 of 5, Code128 with subsets A/B/C and UCC Case Codes, Telepen, FIM & HIBC. 2D Codes: PDF-417, Maxi Code, Datamatrix & QR Code |
|
|
Standard Interface |
Parallel |
IEEE1284 (Compatible, Nibble, ECP Mode) |
|
Serial |
RS232C, Baudrate from 2400-115200 |
|
|
USB |
Full Speed USB1.1 |
|
|
Optional Interfaces |
Ethernet Lan |
|
|
WiFi, Wireless LAN |
||
|
Memory |
DRAM |
8 Mb |
|
Flash Memory |
2 Mb |
|
|
Weight |
3.6 Kg |
|
|
External Dimensions (W x D x H) |
231 x 289 x 183 mm |
|
|
Operating temp. range |
0 to 40 ºC, Humidity 30 to 80% |
|
|
Storage temp. range |
-20 to 60 ºC, Humidity 5 to 85% |
|
|
Standards |
EN60950, EN55022 (Class A), EN55024, EN61000-3-2, EN61000-3-3 |
|
|
Power |
220-240V (-10~+6%), 1.2A, 50/60Hz |
|
