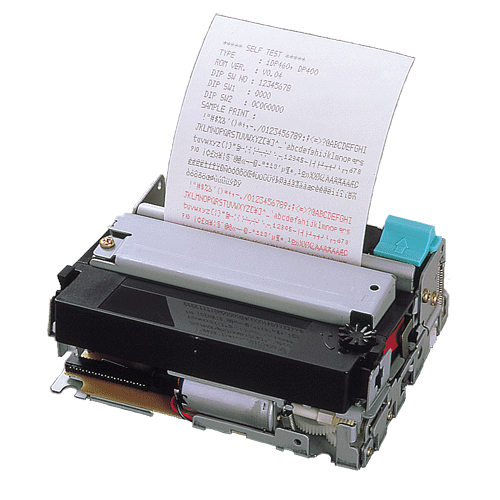

Dot Matrix Printing
-
Compact Design
-
Bi-directional printing
-
2 Colour Printing
-
High Reliability
-
76 mm Paper width
-
24V operation
-
Number of Pins
-
DP420: 7 Pins
-
DP430: 9 Pins
-
??
|
Ribbon |
IR41BR |
Black & Red Ribbon |
|
IR41B |
Black Ribbon |
|
|
Paper |
P7676 |
Plain Paper rolls 76 x 76 mm |
|
C7676 |
2 Ply Paper rolls 76 x 76 mm |
|
|
Auto Cutter |
ACS-234 |
Auto cutter for the DP-4xx |
|
Paper Winder |
AW2FA |
Rewind Device |
|
Printing Method |
Serial Dot Matrix Impact |
|
|
Printing Direction |
Bi-directional |
|
|
Number of Columns |
42 columns |
|
|
Printing Speed (Max.) |
approx. 3.0 lines/sec. |
|
|
Paper Feeding Speed (Max.) |
approx. 28 lines/sec. |
|
|
Total No. of Wires |
7 Pins |
9 Pins |
|
Character Size |
1.31 × 2.4 mm |
1.31 × 3.1 mm |
|
Font |
7 X 7 Matrix |
7 X 9 Matrix |
|
Character Pitch |
1.52 mm |
|
|
Line spacing |
4.23 or 2.82 mm, Minimum 1.41 mm |
|
|
Paper feed method |
Friction or Sprocket feed |
|
|
Paper Type |
Plain Paper, Single or 2 Ply |
|
|
Paper Width |
76 +/- 0.5 mm x Ø83 mm |
|
|
Motor |
24 V DC +/-5%, Current: Peak approx. 1.0A, average 0.2A |
|
|
Reset Pulse Sensor |
Photo interrupter |
|
|
Dot Pulse Sensor |
Photo interrupter |
|
|
Home Position sensor |
Photo interrupter |
|
|
Paper end sensor |
Photo interrupter |
|
|
Black Mark sensor (optional) |
Photo interrupter |
|
|
Connection Method |
FFC or FPC Cable |
|
|
External Dimensions (W x D x H) |
120 × 90 × 45 mm |
|
|
Weight |
470 g |
|
|
Operating Temperature |
0 ~ 50 °C |
|
|
Storage Temperature |
-20 ~ 70 °C |
|
|
Reliability |
Mechanism (MCBF) |
2.5 million lines |
|
Head |
80 million Characters |
|
