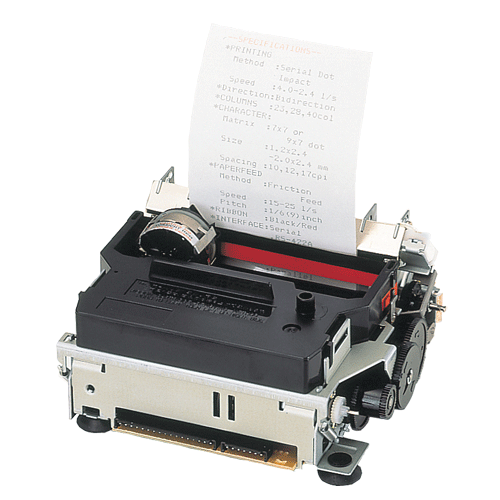

Dot Matrix Printing
-
2 Colour Printing
-
Lightweight
-
High Reliability
-
76 mm Paper width
-
24V operation
-
Graphic Model available in DP617
-
Number of Columns
-
DP610: 23 Columns
-
DP612: 28 Columns
-
DP614: 40 Columns
-
DP617: 40 Columns
-
??
|
Ribbon |
IR61BR |
Black & Red Ribbon for DP-600 |
|
IR61B |
Black Ribbon for DP-600 |
|
|
IR61P |
Purple Ribbon for DP-600 |
|
|
Paper |
P7676 |
Plain Paper rolls 76 x 76 mm |
|
C7676 |
2 Ply Paper rolls 76 x 76 mm |
|
|
C7676-3 |
3 Ply Paper rolls 76 x 76 mm |
|
|
Paper Winder |
AW2FA |
Paper winder mechanism for 76mm Paper |
|
Paper Cutter |
AC2 or AC2F |
Auto Cutter (F = Full Cut) |
|
AC134 |
Auto Cutter (Flatter type) |
|
|
Control Board |
CBM606P |
Parallel Interface Control Board |
|
CBM606R |
RS232 Interface Control Board |
|
|
DP610 |
DP-612 |
DP-614 |
DP-617 |
|
Printing Method |
Serial dot impact method |
|||
|
Printing Direction |
Bidirectional |
|||
|
Printing Speed |
approx. 4.0 lines/sec. |
approx. 3.5 lines/sec. |
approx. 3.0 lines/sec. |
approx. 2.4 lines/sec. |
|
Paper feed Speed |
approx. 25 lines/sec. |
approx. 21 lines/sec. |
approx. 18 lines/sec. |
approx. 15 lines/sec. |
|
Number of Columns |
23 columns, 230 dots/line |
28 columns, 280 dots/line |
40 columns, 360 dots/line |
40 columns, 400 dots/line |
|
Font |
7 x 9 |
|||
|
Character Size (W x H) |
1.8 ×2.4 mm |
1.5 ×2.4 mm |
1.36 ×2.4 mm |
1.2 ×2.4 mm |
|
Line Spacing |
4.23 mm |
|||
|
Paper feed method |
Friction feed or Sprocket Feed |
|||
|
Paper Type |
Friction feed: original +1 copy Sprocket feed: original + 2 copies |
|||
|
Paper Width |
Friction feed:76 mm Roll paper ×ø83 mm Sprocket feed:76 ~ 89 mm fanfold paper |
|||
|
Ribbon |
2 Colour: Red/Black Single Colour: Black or Purple |
|||
|
Motor |
Voltage: 24V DC V DC /Peak current: Max. 2.1A (12V, 25 °C), Average current: Approx. 0.2A or less |
|||
|
Dot pulse sensor |
Photo interrupter |
|||
|
Home pulse sensor |
Photo interrupter |
|||
|
Printing Solenoid |
Voltage: 24V ±1V DC /Resistance:17 O(24V DC,25 °C) |
|||
|
Colour Change solenoid |
Voltage: 24V DC V DC /Resistance:48 O(24V DC,25 °C) |
|||
|
Connecting method |
Connector 1: S16B-PH-K-S (16P), Counterpart PHR-16 (16P) Connector 2: S10B-PH-K-S (10P), Counterpart PHR-10 (10P) manufactured by JST |
|||
|
Drive voltage |
3.5 ~5.5V DC |
|||
|
External Dimensions (W x D x H) |
2 Colour: 137 × 136 × 63.5 mm Single Colour: 134 × 136 × 63.5 mm |
|||
|
Weight |
690 g +/- 10% |
|||
|
Operating Temperature |
0 ~ 50 °C |
|||
|
Storage Temperature |
-25 ~ 70 °C |
|||
|
Reliability (MCBF) |
Printer: 4.0 Million Lines Head: 80 Million Characters |
|||
|
Weight |
690 g +/- 10% |
|||
