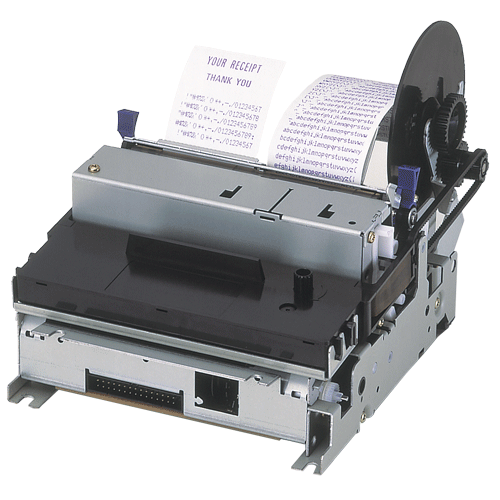

Impact Printing
-
Two Station
-
rugged robust design
-
High Reliability
-
2 x 44 mm Paper width
-
24V operation
-
3.0 lines/sec Printing Speed
-
Options:
-
Paper winder
-
Validation Sensor
-
Stamp
-
Auto cutter
-
Paper near end sensor
-
??
|
Paper |
P4476 |
Plain Paper rolls 44 x 76 |
|
Ribbon |
RC71P |
Purple Ribbon |
|
Printing Method |
Serial Impact Dot Matrix |
|
|
Printing Direction |
Bi-directional |
|
|
Printing Speed |
Approx. 3.0 lines/sec |
|
|
Font |
7 x 9 Matrix |
|
|
Number of Columns |
24 Columns x 2, Validation: 52 Columns |
|
|
Character Size |
1.36 x 2.4 mm or 1.36 x 3.1 mm |
|
|
Line Spacing |
4.23 mm |
|
|
Motor |
Voltage: 24V DC V DC /Peak current: Max. 2.5A, Average current: Approx. 0.45A or less |
|
|
Reset Pulse Sensor |
Mechanical Leaf Switch |
|
|
Dot Pulse Sensor |
Photo interrupter |
|
|
Home Pulse Sensor |
Photo interrupter |
|
|
Printing Solenoid |
Voltage 24 V DC +/- 1V, Resistance 10.5O +/-10% |
|
|
Paper Feed Solenoid |
Voltage 24 V DC +/- 1V, Resistance 34O +/-10% |
|
|
Connection Method |
Pin Connector |
|
|
Paper Feeding |
Friction |
|
|
Paper Feeding Speed |
30 lines/sec |
|
|
Paper Type |
Plain Paper |
|
|
Paper Width |
44 mm |
|
|
Reliability |
Mechanism (MCBF) |
4 Million Lines |
|
Head |
100 Million Characters |
|
|
Operating Environment |
Temperature |
0 ~ 50 °C |
|
Humidity |
35 ~ 85% RH |
|
|
Storage Environment |
Temperature |
-25 ~ 70 °C |
|
Humidity |
10 ~ 90% RH |
|
|
External Dimensions (W x D x H) |
151 x 234.6 x 123.7 mm |
|
|
Weight |
Approx. 1250g |
|
