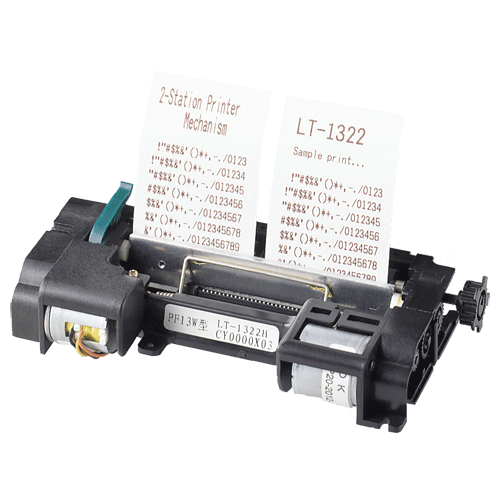

Line Thermal Printing
-
Compact design
-
Lightweight
-
High Reliability
-
2 x 38 mm Paper width
-
24V operation
?
|
Paper |
T3880 |
Thermal Paper rolls 38 x 80 mm |
|
Printing Method |
Line Thermal Dot Printing |
|
|
Total Dots |
248 Dot/Lines x 2 |
|
|
Dot Density |
8 Dots/mm |
|
|
Printing width |
38 mm x 2 |
|
|
Printing Speed |
Max. 80 mm/sec (640 dot-lines/sec) |
|
|
Sensors |
Head Temperature |
Thermistor |
|
Paper Presence |
Photo Interrupter |
|
|
Head up |
Photo Sensor |
|
|
Voltage |
Vp |
DC 24V +/- 10% |
|
Vdd |
DC 5V +/- 5% |
|
|
Current Head Vp=5V |
Approx. Max. 4.5A |
|
|
Current Motor Vp=5V |
Approx. Max. 0.4A |
|
|
Paper feeding pitch |
0.125 mm |
|
|
Paper Type |
Thermal |
|
|
Paper Width |
38 mm |
|
|
Reliability |
Head Pulse Resistance |
50,000,000 pulse or more |
|
Head Wear Resistance |
50 Km or more |
|
|
Operating Environment |
Temperature |
0 ~ 45 °C |
|
Humidity |
35 ~ 85% RH |
|
|
Storage Environment |
Temperature |
-20 ~ 60 °C |
|
Humidity |
10 ~ 90% RH |
|
|
External Dimensions (W x D x H) |
120 x 58 x 24.5 mm |
|
|
Weight |
Approx. 97g |
|
