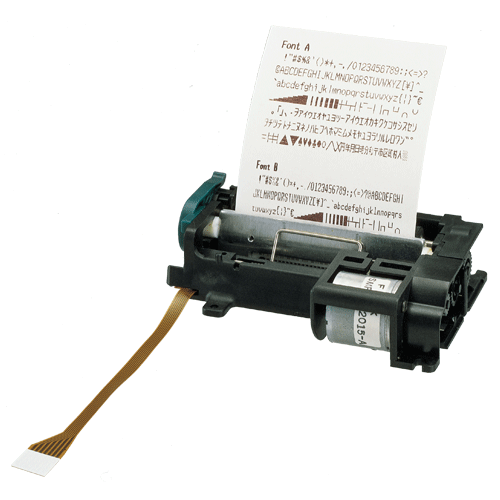

Line Thermal Printing
-
Ultra Compact Design
-
Lightweight
-
High Reliability
-
57 or 80mm Paper width
-
LT2220: 58 mm
-
LT2320: 80 mm
-
-
Thick Paper capability up to 150 µm
-
24V operation
-
Fixed Platen
-
LT-1220, BD2-1220U & LT-1320 still Available
?
|
Paper for LT2220 |
T5750 |
Thermal Paper rolls 57 x 50 mm |
|
T5770 |
Thermal Paper rolls 57 x 70 mm |
|
|
Paper for LT2320 |
T8080 |
Thermal Paper rolls 80 x 80 mm |
|
T80100 |
Thermal Paper rolls 80 x 100 mm |
|
|
Paper Cutter |
ACS225 |
Auto Cutter for LT-2220 |
|
ACS235 |
Auto Cutter for LT-2320 |
|
|
Gate array |
202LA-00 |
Gate Array |
|
Control Board |
BD2-2220 |
Control Board for LT-2220 Parallel and RS-232 Interface |
|
BD2-2221 |
Control Board for LT-2320 Parallel and RS-232 Interface |
|
Printing Method |
Line Thermal Dot Printing |
|
|
Total Dots |
432 Dot/Lines |
576 Dot/Lines |
|
Dot Density |
8 Dots/mm |
|
|
Printing width |
54 mm |
72 mm |
|
Printing Speed |
Max. 150 mm/sec (1200 dot-lines/sec) |
|
|
Sensors |
Head Temperature |
Thermistor |
|
Paper Presence |
Photo Sensor |
|
|
Head up |
Photo Sensor |
|
|
Voltage |
VH |
DC 21.6 ~ 26.4V |
|
Vdd |
DC 4.75 ~ 5.25V |
|
|
Current Head Vp=5V |
Approx. Max. 5.2A |
|
|
Current Motor Vp=5V |
Approx. Max. 0.41A |
|
|
Paper feeding pitch |
0.125 mm |
|
|
Paper Type |
Thermal |
|
|
Paper Width |
58 mm |
80 mm |
|
Paper Thickness |
Standard type 60 ~ 105 µm, A-type: 110 ~ 150 µm |
|
|
Reliability |
Head Pulse Resistance |
50,000,000 pulse or more |
|
Head Wear Resistance |
50 Km or more |
|
|
Operating Environment |
Temperature |
0 ~ 45 °C |
|
Humidity |
35 ~ 85% RH |
|
|
Storage Environment |
Temperature |
-20 ~ 60 °C |
|
Humidity |
10 ~ 90% RH |
|
|
External Dimensions (W x D x H) |
91.5 x 58 x 20 mm |
108 x 58 x 20 mm |
|
Weight |
Approx. 87g |
Approx. 99g |
