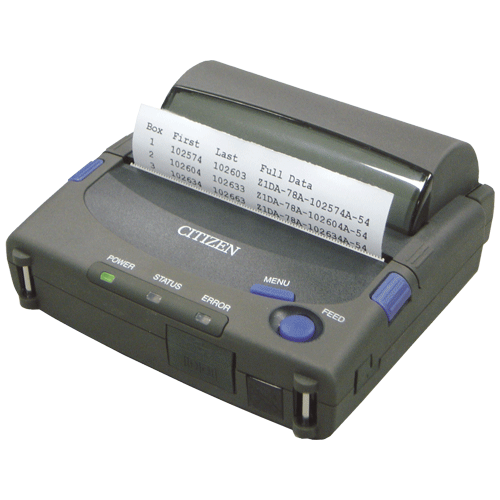

Clamshell Design
-
112mm Paper width
-
Bluetooth, IRDA, RS232 & USB interface
-
Small footprint and light weight
-
Li-ion rechargeable Battery
-
Low battery monitoring
-
Internal Charging Circuit
-
Auto power off function
|
Paper |
T11050 |
Thermal 110 x 50 Paper rolls |
|
RS-232 Cable |
CAB-PD24R |
RS-232 Cable for the PD24 |
|
USB Cable |
CAB-PD24U |
USB Cable for the PD24 |
|
Printing Method |
Line Thermal Dot Printing |
|
|
Printing Width |
104mm / 830 Dots |
|
|
Dot pitch |
8 x 8 dots/mm 203 dpi |
|
|
Printing speed |
Max. 50 mm/sec |
|
|
Number of columns |
Font A: |
32 columns; 12 x 24 dots |
|
Font B: |
42 columns; 9 x 16 dots |
|
|
Character size (W x H) |
Font A: |
1.25 x 3.00 mm; 12 x 24 dots |
|
Font B: |
0.88 x 2.13 mm; 9 x 16 dots |
|
|
Printer Control Language |
ESC P (Citizen Original) ESC/POS (Barcode Commands only) |
|
|
Bar-code Type |
UPC-A/E, EAN13/8, Code39, ITF, Codabar, Code93, Code128, Interleaved 2 of 5, UCC/EAN |
|
|
Line spacing |
4.23 mm (1/6 inch), software selectable |
|
|
Paper |
Max. Width 112 mm, Thickness 60-65 µm, Max. Diameter 50 mm |
|
|
Interface |
IrDA Version 1.2 |
|
|
RS-232C with optional special cable (up to 115200 bps) |
||
|
Bluetooth V1.1 wireless interface |
||
|
Input Buffer |
64 Kbyte |
|
|
Sensor & Error monitoring |
Paper end, Cover-open, Low battery, Head overheat |
|
|
Power Supply |
Li-ion battery 1800mAh |
|
|
AC adaptor for charging included |
||
|
Battery |
25,000 print lines per charge (Characters) |
|
|
Maximum recharge time: 3 hours |
||
|
Auto power off |
1-60 minutes (default 10 min.) Software selectable. |
|
|
Weight |
Approx. 540g (with battery, w/o paper roll) |
|
|
Dimensions (W x D x H) |
147 x 140 x 63 mm |
|
|
Operating environment |
+5 ~ +40 ºC |
|
|
Storage environment |
-25 ~ +60 ºC |
|
|
Reliability |
Thermal head: |
30,000,000 pulses (12.5% Coverage, density 0) |
|
Safety standards |
UL, C-UL, TUV, GS, CE Marking, Fcc Class B, VCCI Class B |
|
