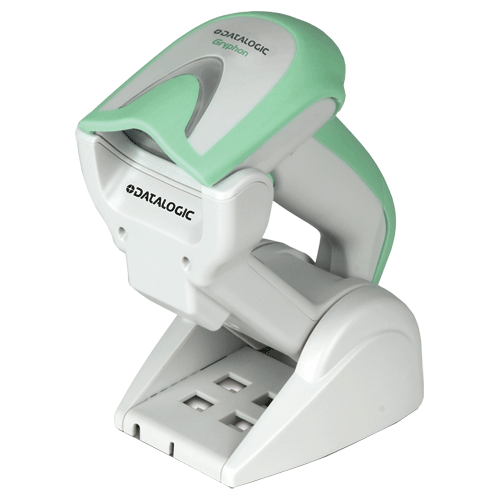

Cordless Handheld Linear Imager Scanner
-
Disinfectant-Ready enclosures treated with SANITIZED™ anti-microbial additives
-
Fastest speed-to-read: 325 scans/second
-
Bluetooth Wireless Technology with up to 30 m range
-
Point-to-point and multi-point transmission
-
Two-position cradle with Scan-While-Charging capability
-
Batch Mode capability (>1200 codes stored in memory)
-
Datalogic ‘Green Spot’ for good read feedback
-
User-replaceable and long lasting Lithium-Ion battery
-
Drop resistance to 1.5 m
?
|
Charge/Comms Cradle |
DLBC4030HC-BT |
Base Charger for RS232, USB, KBW, Wand Emulation Multi interface, Healthcare |
|
Sensor |
CCD Solid State |
|
Light source |
Dual LED Array 630-670nm |
|
Depth of field |
6.0 to 18 cm on 5 mils barcode 3.5 to 30 cm on 7.5 mils barcode 2.0 to 45 cm on 10 mils barcode 3.0 to 60 cm on 13 mils barcode 3.0 to 80 cm on 20 mils barcode |
|
Scan rate |
325 Reads/sec |
|
Resolution |
Max. 0.076mm/3 mils |
|
Print Contrast |
15% or higher |
|
Pitch Angle |
+/- 65º |
|
Roll (Tilt) Angle |
+/- 35º |
|
Skew (Yaw) Angle |
+/- 65º |
|
Reading Indicators |
Good Read LED, “Green spot” on the code, adjustable tone beeper. |
|
Cradle Indicators |
Battery charging (Red) Charge completed (Green) Power/Data (Yellow) |
|
Symbologies supported |
Linear codes: Auto-discriminates all standard 1D codes including GS1 DataBar™ linear codes Stacked Codes: GS1 DataBar Expanded Stacked, GS1 DataBar Stacked and GS1 DataBarStacked Omni-directional |
|
Bluetooth |
Bluetooth 2.0 Certified Class 2 Radio Frequency 2.4 GHz Radio Range (open air) 30m |
|
Battery |
Type: Li-Ion 2100mAh Charge Time: 4 Hours Reads per Charge: 33,000 |
|
Interface |
USB, RS232, Wedge & Wand Multi Interface (BC4030HC) |
|
Programming method |
Manual: Reading special bar codes Automatic: (with RS-232) S/W commands through the serial port ALADDIN™: Windows configuration program |
|
Input voltage |
4.5-14.0 VDC |
|
Input Current |
Charging (typical) < 8 W Operating typical 2.5 W @ 5V Standby/Idle Typical 2.5 mA @ 5V |
|
ESD Protection |
16 kV (Air Discharge) |
|
Drop Resistance |
Withstands repeated drops from 1.5m onto concrete |
|
Sealing |
IP52 |
|
Humidity |
0 ~ 90% non condensing |
|
Operating Temp. |
0 ~ 50°C |
|
Warranty |
3 Year limited Factory Warranty (not on cable) |
|
Dimensions (H x W x L) |
Reader 181 x 71 x 100 mm Cradle 186 x 99 x 56 mm |
|
Weight |
Cradle: 246g Reader: 169g |
