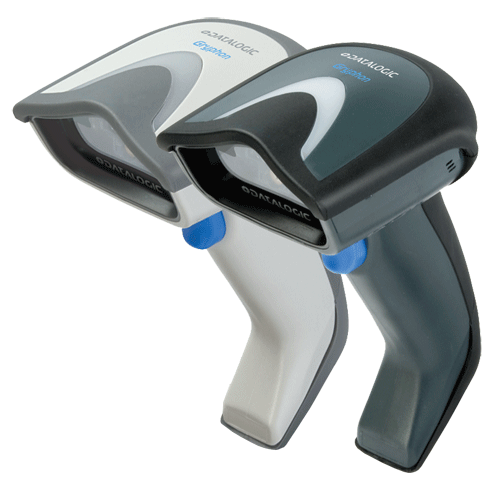

Handheld Laser Scanner
-
Aggressive reading performance: over 100 scans/second
-
Excellent depth-of-field over 47 cm
-
Wide 42° scan angle for reading wider codes
-
Datalogic’s patented ‘Green Spot’ for good-read feedback
-
Supports GS1 DataBar™ linear codes
-
Multi-interface solutions support most popular interfaces including USB, RS-232, Keyboard Wedge, IBM 46XX and Wand
-
IP52 Rating: Water and Particulate Sealing
-
Drop resistance to 1.8 m
?
|
Hands free Stand |
DLGD41BSTD-B |
Standard Hands free Stand for Gryphon GD4100, Black |
|
DLGD41AUTOSTD-B |
Smart Hands free Stand for Gryphon GD4100, Black |
|
|
Desk/Wall Holder |
DLGD41WHLD-B |
Desk/Wall Holder for Gryphon GD4100, Black |
|
Adaptor |
AD-DL5VR |
5V Regulated Power Supply |
|
Sensor |
Laser Engine |
|
Light source |
630 – 680 nm VLD |
|
Depth of field |
3.6 to 15.8 cm on 5 mils barcode 2.8 to 35.0 cm on 10 mils barcode Up to 69.0 cm on 20 mils barcode |
|
Scan rate |
100 Reads/sec |
|
Print Contrast |
25% or higher |
|
Pitch Angle |
+/- 50º |
|
Roll (Tilt) Angle |
+/- 35º |
|
Skew (Yaw) Angle |
+/- 65º |
|
Reading Indicators |
Good Read LED, “Green spot” on the code, adjustable tone beeper. |
|
Interface |
USB, RS232, Wedge & Wand Multi Interface (GD4330) RS232, IBM 46XX, USB Multi Interface (GD4310) |
|
Symbologies supported |
Linear codes: Auto-discriminates all standard 1D codes including GS1 DataBar™ linear codes Stacked Codes: GS1 DataBar Expanded Stacked, GS1 DataBar Stacked and GS1 DataBar Stacked Omni-directional |
|
Programming method |
Manual: Reading special bar codes Automatic: (with RS-232) S/W commands through the serial port ALADDIN™: Windows configuration program |
|
Input voltage |
GD4330 4.75-5.25 VDC GD4310 4.5-14.0 VDC |
|
Input Current |
GD4330: Operating typical 260mA @ 5V GD4310: Operating typical 185mA @ 5V Standby/Idle Typical 30 mA @ 5V |
|
ESD Protection |
16 kV (Air Discharge) |
|
Drop Resistance |
Withstands repeated drops from 1.8m onto concrete |
|
Warranty |
5 Year limited Factory Warranty (not on cable) |
|
Dimensions (H x W x L) |
181 x 71 x 100 mm |
|
Weight |
169g |
