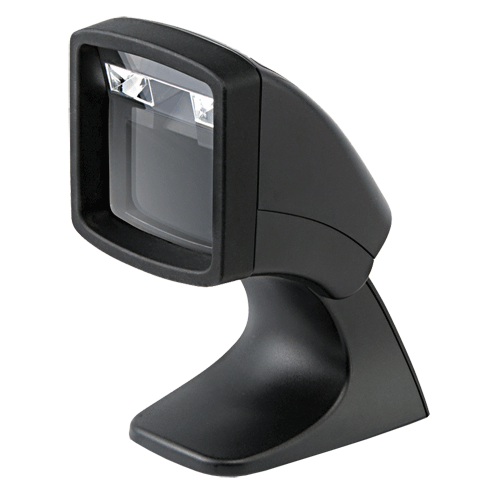

Aggressive performance on 1D and 2D codes increases productivity
-
Powerful Advanced Data Editing for custom host output
-
No moving parts for improved reliability
-
Illumix™ intelligent illumination technology for reading bar codes from mobile phones or laptops
-
Ergonomically designed for hands-free or handheld operation
-
Small footprint for easy installation into space constrained applications
-
Precise imaging scan volume eliminates misreads caused by stray laser scan lines
-
Configurable image capture mode to optimize host upload time
-
Checkpoint Systems EAS and Interlock compatible
|
Adaptor |
AD-DL5VR06N |
5V Regulated Power Supply |
|
Scan Engine |
1D Imager or 2D Imager (Optional) |
|
Pitch |
+/- 60° |
|
Roll (Tilt) |
0 – 360° |
|
Skew (Yaw) |
+/- 60° |
|
Ambient Light |
Indoor: 0 – 6,000 Lux |
|
Outdoor 0 – 86,000 Lux |
|
|
Maximum Resolution |
5 mils, 0.130mm |
|
Print Contrast Ratio |
25% minimum |
|
Depth of Field |
1D & 2D version: 5 mils – 0 ~ 2.5 cm 7.5 mils – 0 ~ 8.2 cm 10 mils – 0 ~ 12.7 cm 13 mils UPC – 0 ~ 15.2 cm 2D version: 6.6 mils PDF – 0 ~ 7.6 cm 10 mils Data matrix – 0.6 ~ 3.1 cm 10 mils PDF – 0 ~ 12.7 cm 15 mils PDF – 0 ~ 15.2 cm 24 mils Data Matrix – 0 ~ 12.7 cm |
|
Decoding Capability |
1D & 2D version: Auto discriminates all standard 1D codes including including GS1 DataBar™ linear codes 2D version: Aztec code, Data Matrix, MaxiCode, QR Code, GS1 DataBar Composites, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, MicroPDF417, PDF417 |
|
Image Capture (Optional) |
752 x 480 pixels JPEG |
|
Communications |
RS232, USB (OEM USB, USB COM, USB HID Keyboard, USB TEC) |
|
Dimensions L x W x D |
15.1 x 7.6 x 10.9 cm |
|
Weight |
306.2 g |
|
Shock |
Multiple 1.2m Drops on Concrete |
|
Sealing |
IP52 (Water & Dust Resistant) |
|
ESD Protection |
20 kV Air Discharge |
|
Operating Humidity |
5~95% non condensing |
|
Operating Temperature |
0~40 °C |
|
Storage Temperature |
-40~70 °C |
|
Power requirements |
Max. 400 mA |
|
Operating Voltages |
5 VDC (+/- 10%) |
|
Operating Current |
< 350 mA typical |
|
Standby Current |
< 250 mA typical |
|
Utilities |
Magellan™ OSP OPOS / JavaPOS Remote Host Downloads |
|
Warranty |
3 Year limited Factory Warranty (not on cables) |
