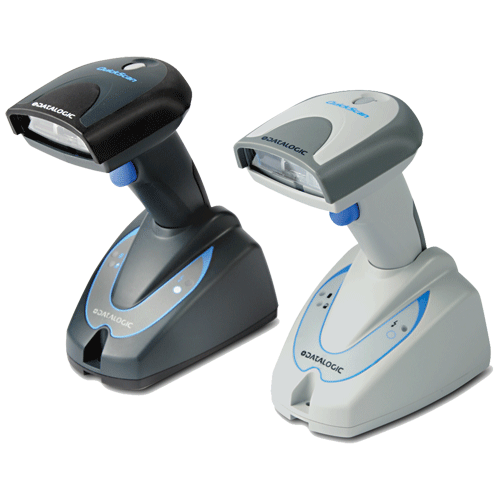

Cordless Linear Imager Scanner
-
Datalogic STAR Cordless System™: Superior 40 ft /12 m radio range for point-to-point connectivity
-
No interference with Wifi networks
-
Reliable and durable, No moving parts
-
Withstands drops from 1.5m to concrete
-
Excellent reading performance provides outstanding first pass read rates
-
Multi-interface: USB, RS-232, Keyboard Wedge and Wand emulation
-
Solid state design provides a reliable product and durability
-
Long lasting Lithium-Ion battery
-
Scan-While-Charging capability
-
Latch mechanism secures reader in cradle providing for stable mobility
-
Batch mode capability
-
GS1 DataBar™ (RSS) decoding capability
|
Base Station |
DLQM2130BASE |
Base Station for QuickScan Mobile, White |
|
DLQM2130BBASE |
Base Station for QuickScan Mobile, Black |
|
|
Battery Pack |
DLQM2130BATT |
Spare Battery pack |
|
Adaptor |
AD-DL5VR |
5V Regulated Power Supply |
|
Depth of field |
between 2-27cm depending on barcode size |
|
Light source |
LED array 630-670nm |
|
Scan rate |
235 Scan/sec |
|
Min. Resolution |
0.10mm/4 mils |
|
Print Contrast |
20% or higher |
|
LED Safety Class |
Class 1 EN60825-1 |
|
Reading indicators |
LED & Beeper |
|
Interface |
PS2 Keyboard wedge, Standard RS-232, USB |
|
Battery |
Li-ion 700mAh |
|
Operating time |
Typical 20,000 Scans |
|
Recharge time |
6 Hours |
|
Symbologies supported |
UPC-A/E, EAN8/13/128, JAN8/13, Code128, Codabar, Code93, Code39, Code49, Code11, Interleaved 2 of 5, Standard 2 of 5, IATA, MSI, Plessey, GS1 Databar |
|
Radio |
frequency: 433.92 Mhz Bit Rate 19,200 baud Effective radiated power: <10mW Range (in open air): up to 12 m |
|
Base Station power |
5 VDC Power consumption: 4W when charging |
|
Base Station indicators |
Battery Charging: Red Charge Completed: Green Power/Data: Yellow |
|
Warranty |
3 Year limited Factory Warranty (not on cable) |
|
Dimensions (H x W x L) |
Scanner:171 x 68 x 90 mm Base Station: 80 x 90 x 130 mm |
|
Weight |
Scanner:189g without batteries Base Station: 181g |
