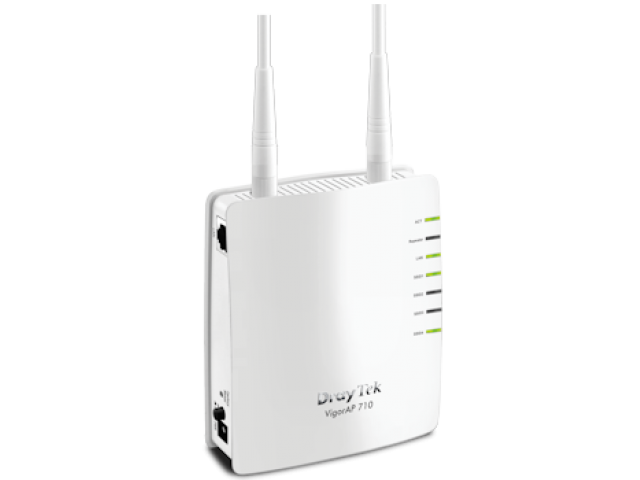

The DrayTek Vigor AP710 is a standalone wireless access point, ideal for adding wireless connectivity to an existing LAN, or for expanding the range of an existing wireless LAN by using the WDS features.
As an access point, the Vigor AP710 connects to your existing ethernet switch or router. Wireless users can then connect to your LAN. You can restrict access to specific devices by locking in their hardware ‘MAC address’ and if you have a radius server, user access can be further limited requiring unique login using 802.1x authentication (MD5/PEAP mode).
Where you wish to provide wireless access over a larger area, or throughout a larger building, you could install several AP-710’s, each wired back to your central network. The AP-710 also supports limited functions within DrayTek’s Wireless management system.
In addition, the AP710 can operate in several other wireless modes:
Access Point – Standard Operation, as described above
Universal Repeater – The AP710 acts as both a wireless client and access point simultaneously, effectively increasing the range of an existing access point.
Bridge – Using two AP710’s, each connected to a separate wired LAN, a wireless bridge can be formed connecting the two LANs. Ideal where a physical link (cable) isn’t possible, for example, across a road.
Station – The AP710 acts as a wireless client to another wireless access point. Ideal for games consoles or PCs which need a self-contained ‘intelligent’ wireless interface with connectivity provided via their Ethernet point.
- 802.11n Wireless Access Point
- WPA2 Wireless Encryption
- Repeater/Bridge/Access Point/Station Modes
- Up to four distinct SSIDs
- MAC Address Filtering
- Radius User/WPA Authentication
- 802.1x User Authentication
- WDS (Wireless Distribution System)
Specification
IEEE 802.11n / g / b (2.4Ghz)
LAN Interface : 1 x 10/100 port Ethernet, RJ-45
Frequency Band 2.4 GHz
Wireless Encryption : WPA2 Encryption (WEP/WPA also support, but not recommended)
User Authentication : 802.1x (Requires Radius Server) (MD5/PEAP Modes)
Repeater/Bridge/Access Point/Station Modes
Up to four distinct SSIDs
MAC Address Filtering
WDS (Wireless Distribution System)
WMM (Wireless MultiMedia)
WPS – WiFi Protected Setup
Wireless Transmit Power : Max 18 ± 1dBm
Temperature Operation : 0° C to 40° C
Humidity: 10% to 90 % (Non-condensing)
Physical Dimensions: (H) x (W) x (D) mm
Weight : 0.kg (main unit, including Aerials)
Wall Mountable
Power 12VDC via AC/DC PSU (supplied)
Warranty : 2 Year
WMM (Wireless MultiMedia)
WPS – WiFi Protected Setup
Built-in Site Surveyor
