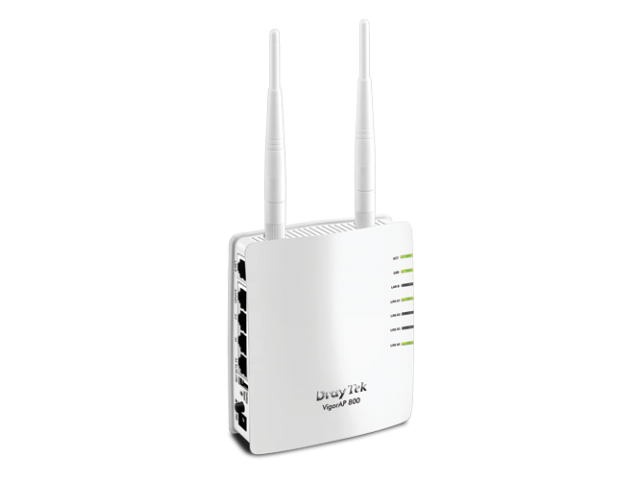

As an access point, a repeater, a bridge and a station device with a built-in site surveyor, 4 port switch and it’s ability to handle two LANs as if they were two physically seperate networks, the DrayTek Vigor AP-800 is a very versatile piece of equipment.
Key features:
- Business-class IEEE 802.11n WLAN access point
- Supports 802.3af Power over Ethernet (PoE)
- Wi-Fi multimedia (WMM) quality of service features
- Comprehensive and trusted security
- Supports 4 SSIDs
- Multiple operation modes: access point, wireless client, wireless distribution system (WDS) with access point, WDS/bridge (No AP broadcasting)
- 2 year warranty
Specifications:
1.Wireless AP •Mode: ?AP Mode
?Station Infrastructur
?AP Bridge Point to Point
?AP Bridge Point to Multipoint
?WDS
?Universal Repeater
•IEEE802.11b / g / n Compliant
•Wireless Client List
•64/128-bit WEP
•WPA / WPA2
•Multiple SSID
•Hidden SSID
•WPS
•WMM(Wi-Fi Multimedia)
•MAC Address Control
•Wireless Client Isolation
•Internal Radius Server *
•MAC Clone
•AP Client Security: TLS, PEAP *
•DHCP Server
•TR-069 *
•VLAN Grouping and SSID Mapping for LAN A & B
2.USB •Printer Server *
3.Network Management •Web-based User Interface (HTTP)
•CLI (Command Line Interface, Telnet)
•Configuration Backup/Restore
•Firmware Upgrade via WUI
•Management Session Time Out
4.Hardware Interface •5 x 10/100 Base-TX LAN Switch, RJ-45
•1 x USB 2.0 Host
•2 x Detached Antennas
•1 x Factory Reset Button
•1 x Wireless ON / OFF / WPS Button
•1 x Power ON / OFF Button
Wireless AP Modes:
- AP Mode, Station Infrastructure, AP Bridge Point to Point, AP Bridge Point to Multipoint, WDS, Universal Repeater
- IEEE802.11b / g / n Compliant
- Wireless Client List
- 64/128-bit WEP
- WPA / WPA2
- Multiple SSID
- Hidden SSID
- WPS
- WMM(Wi-Fi Multimedia)
- MAC Address Control
- Wireless Client Isolation
- Internal Radius Server *
- MAC Clone
- AP Client Security: TLS, PEAP *
- DHCP Server
- TR-069 *
- VLAN Grouping and SSID Mapping for LAN A & B
Network Management
- Web-based User Interface (HTTP)
- CLI (Command Line Interface, Telnet)
- Configuration Backup/Restore
- Firmware Upgrade via WUI
- Management Session Time Out
Hardware Interface:
- 5 x 10/100 Base-TX LAN Switch, RJ-45
- 1 x USB 2.0 Host
- 2 x Detached Antennas
- 1 x Factory Reset Button
- 1 x Wireless ON / OFF / WPS Button
- 1 x Power ON / OFF Button
Power consumption:
- 7.2W (max)
- 12-15V DC
- 0.6A-0.5A
